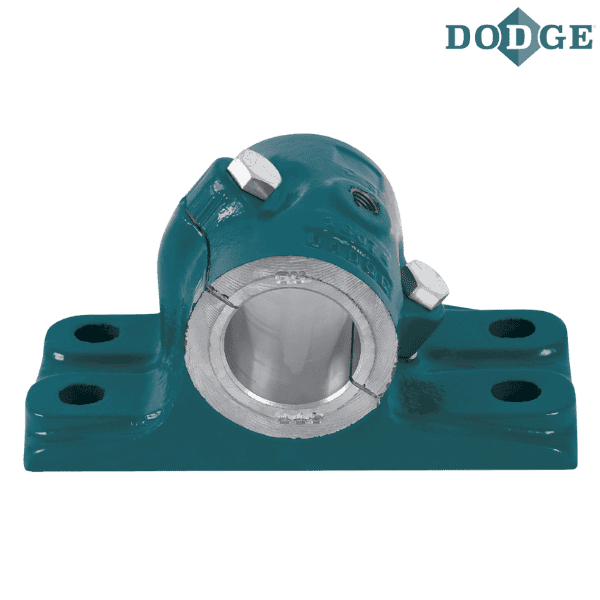

230077 DODGE - P4B-BAA-507

Brand - DODGE
Item Number - 230077 DODGE - P4B-BAA-507
Category - Sleeve Bearings - Angle Babbitted Pillow Blocks
Shaft Size (inch) - 5.4375
Description - P4B-BAA-507
Weight (lbs) - 154
Used on Frame - HD-500

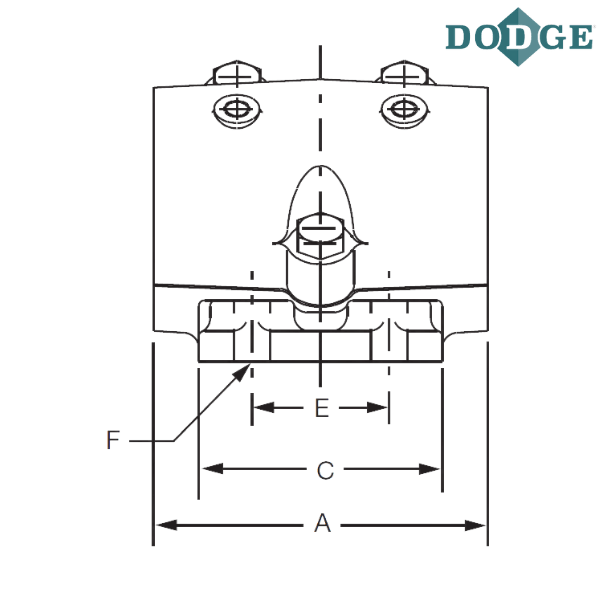

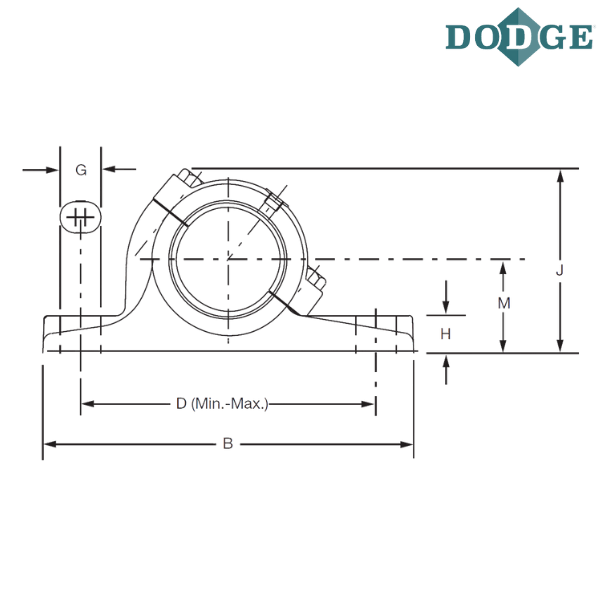

Length Through Bore (A) inch - 11
Overall Length (B) inch - 19.75
C (inch) - 8
Bolt to Bolt Minimum Distance (D min) inch - 15.0625
Bolt to Bolt Maximum Distance (D max) inch - 16.4375
E (inch) - 4.5
F-Bolt Diameter (inch) - 1.125
G (inch) - 1.875
H (inch) - 2
Overall Height (J) inch - 10.25
Base to Center Height (M) inch - 5
Grease Cups (Pipe Tap) inch - 0.5
Grease Cups (Number Required) - 2
Grease Cups (Size) - 3

Notes :
P4B - Pillow Block, 4 Bolt Base
BAA - Babbitted Angle
507 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

** Images are for representation purposes only
