230080 DODGE - P4B-BAA-515

Brand - DODGE
Item Number - 230080 DODGE - P4B-BAA-515
Category - Sleeve Bearings - Angle Babbitted Pillow Blocks
Shaft Size (inch) - 5.9375
Description - P4B-BAA-515
Weight (lbs) - 184
Used on Frame - HD-500

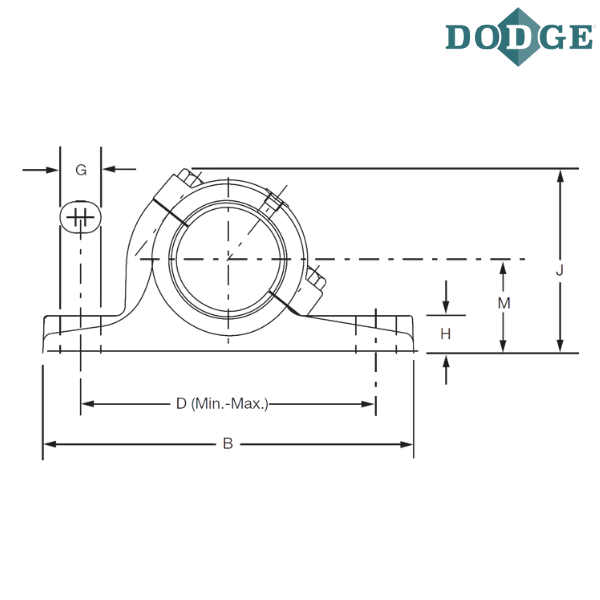

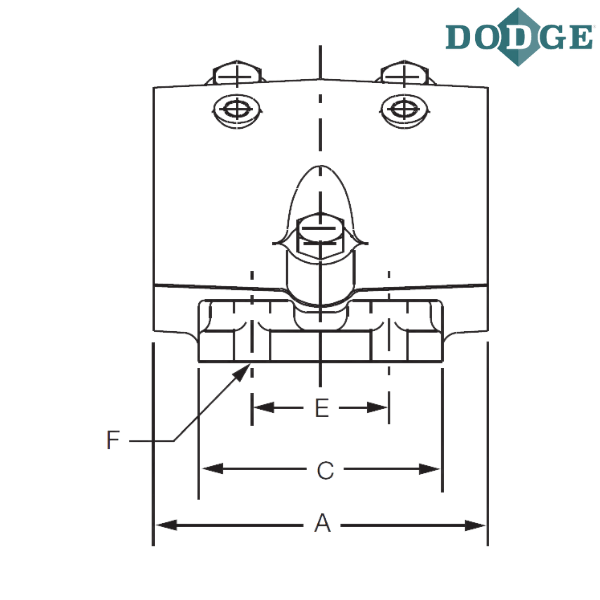

Length Through Bore (A) inch - 12
Overall Length (B) inch - 20.5
C (inch) - 8.5
Bolt to Bolt Minimum Distance (D min) inch - 15.8125
Bolt to Bolt Maximum Distance (D max) inch - 17.1875
E (inch) - 5
F-Bolt Diameter (inch) - 1.125
G (inch) - 1.875
H (inch) - 2.125
Overall Height (J) inch - 11.0625
Base to Center Height (M) inch - 5.5
Grease Cups (Pipe Tap) inch - 0.5
Grease Cups (Number Required) - 2
Grease Cups (Size) - 3

Notes :
P4B - Pillow Block, 4 Bolt Base
BAA - Babbitted Angle
515 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

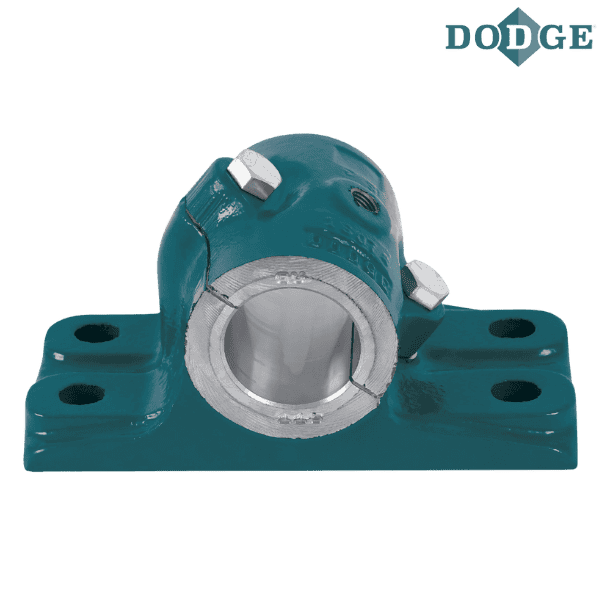

** Images are for representation purposes only
