Description
Brand - FAG
Item Number - 230S.607-MA FAG

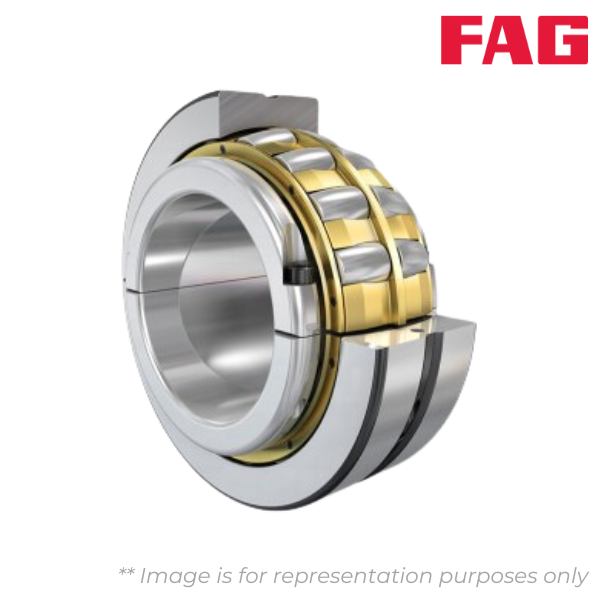

Category - Split Spherical Roller Bearing
Weight (m) kg - 24.4
Inner Diameter (d) inch - 6.4375
Inner Diameter (d) mm - 163.513
Outer Diameter (D) mm - 280
Outer Ring Width (C) mm - 74
Inner Ring Width (B) mm - 123
Minimum Chamfer Dimension (r) mm - 2.1
Basic Radial Dynamic Load Rating (Cr) kN - 640
Basic Radial Static Load Rating (C0r) kN - 1000
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.23
Dynamic Axial Load Factor (Y1) - 2.98
Dynamic Axial Load Factor (Y2) - 4.44
Static Axial Load Factor (Y0) - 2.92
Fatigue Radial Load Limit (Cur) kN - 96
Maximum Axial Load (Fa) - 22.2
Limiting speed (nG) min–1 - 750
Tightening Torque Clamping Screw (Ni) Nm - 69
Tightening Torque Clamping Screw (Ma) Nm - 14
Bearing Designation - 23038K
Adapter Sleeve - SNP3036.607
Housing - H3038.607
