Description
Brand - FAG

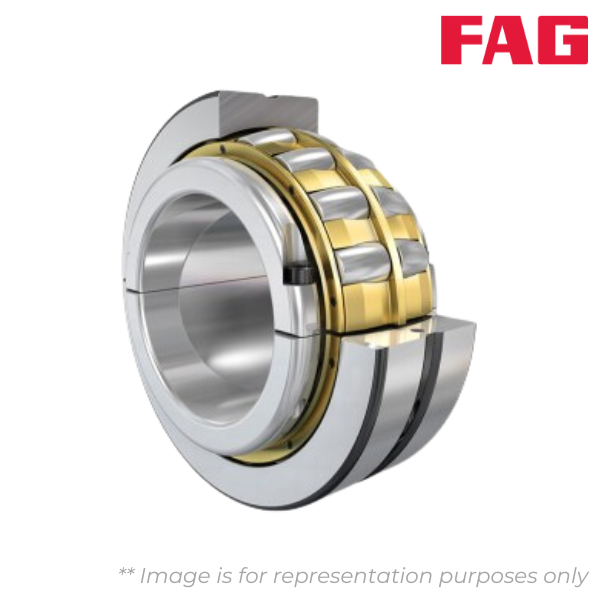

Item Number - 230SM140-MA FAG
Category - Split Spherical Roller Bearing
Weight (m) kg - 15.5
Inner Diameter (d) mm - 140
Outer Diameter (D) mm - 240
Outer Ring Width (C) mm - 60
Inner Ring Width (B) mm - 106
Minimum Chamfer Dimension (r) mm - 2.1
Basic Radial Dynamic Load Rating (Cr) kN - 450
Basic Radial Static Load Rating (C0r) kN - 680
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.22
Dynamic Axial Load Factor (Y1) - 3.1
Dynamic Axial Load Factor (Y2) - 4.62
Static Axial Load Factor (Y0) - 3.03
Fatigue Radial Load Limit (Cur) kN - 51
