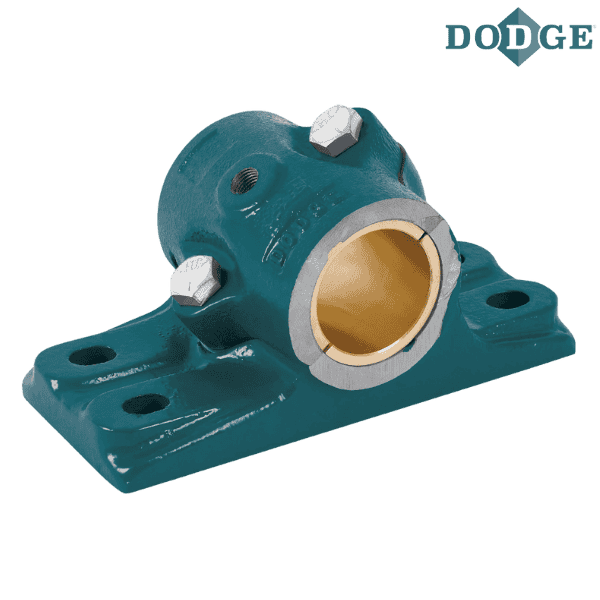

231069 DODGE - P4B-BZA-203

Brand - DODGE
Item Number - 231069 DODGE - P4B-BZA-203
Category - Sleeve Bearings - Angle Bronze-Bushed Pillow Blocks
Shaft Size (inch) - 2.1875
Description - P4B-BZA-203
Weight (lbs) - 14
Used on Frame - HD-200

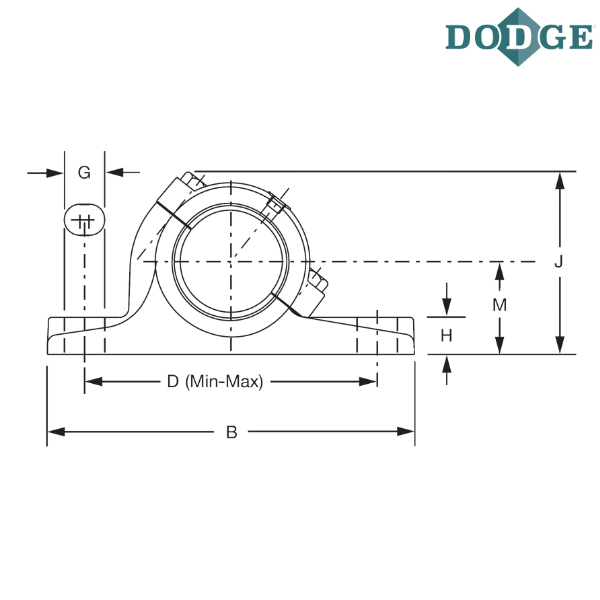

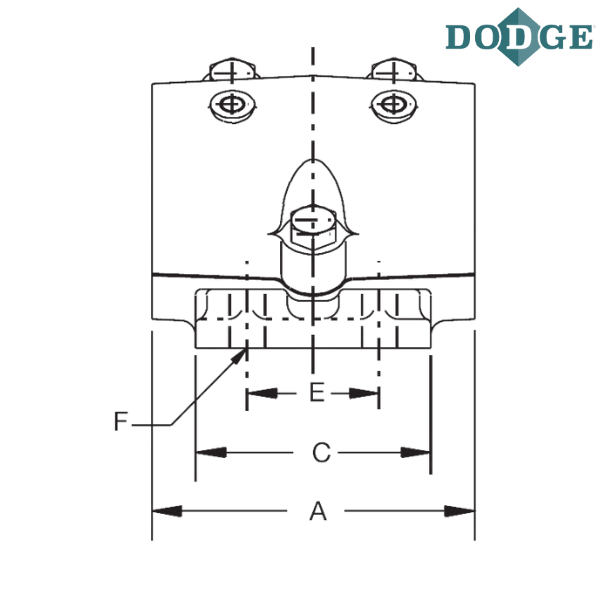

Length Through Bore (A) inch - 4.5
Overall Length (B) inch - 8.5
C (inch) - 3.5
Bolt to Bolt Minimum Distance (D min) inch - 6.5625
Bolt to Bolt Maximum Distance (D max) inch - 6.9375
E (inch) - 1.75
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.75
H (inch) - 1
Overall Height (J) inch - 5.125
Base to Center Height (M) inch - 2.5
Cap Bolts Quantity - 2
Grease Cups (Pipe Tap) inch - 0.375
Grease Cups (Quantity) - 1
Grease Cups (Size) - 2

Notes :
P4B - Pillow Block, 4 Bolt Base
BZA - Bronze Bushed Angle
203 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

** Images are for representation purposes only
