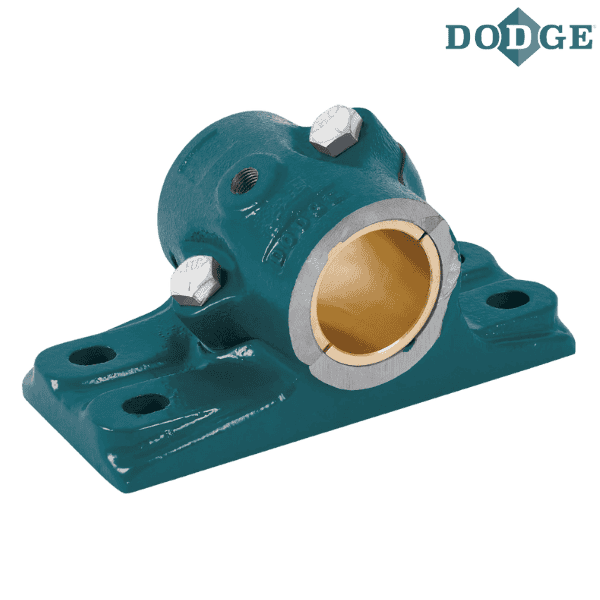

231102 DODGE - P4B-BZA-315

Brand - DODGE
Item Number - 231102 DODGE - P4B-BZA-315
Category - Sleeve Bearings - Angle Bronze-Bushed Pillow Blocks
Shaft Size (inch) - 3.9375
Description - P4B-BZA-315
Weight (lbs) - 62
Used on Frame - HD-350

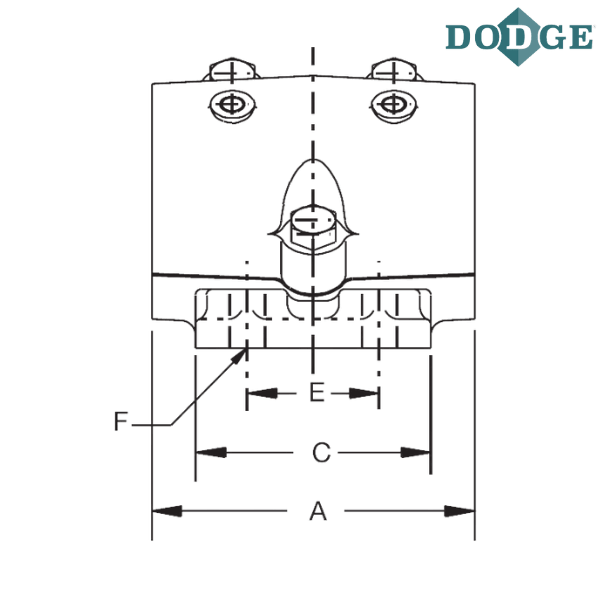

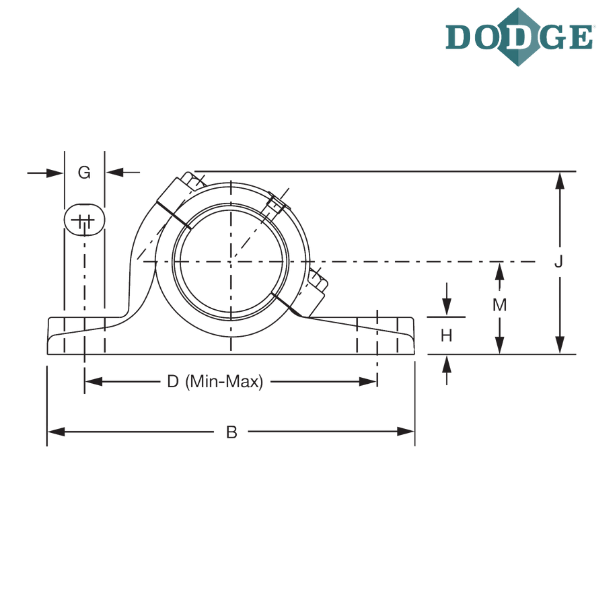

Length Through Bore (A) inch - 8
Overall Length (B) inch - 14.75
C (inch) - 5.5
Bolt to Bolt Minimum Distance (D min) inch - 11.4375
Bolt to Bolt Maximum Distance (D max) inch - 12.5625
E (inch) - 3
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.375
H (inch) - 1.625
Overall Height (J) inch - 7.5
Base to Center Height (M) inch - 3.75
Cap Bolts Quantity - 3
Grease Cups (Pipe Tap) inch - 0.5
Grease Cups (Quantity) - 1
Grease Cups (Size) - 4

Notes :
P4B - Pillow Block, 4 Bolt Base
BZA - Bronze Bushed Angle
315 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

** Images are for representation purposes only
