Description
Brand - FAG
Item Number - 231SM115-MA FAG

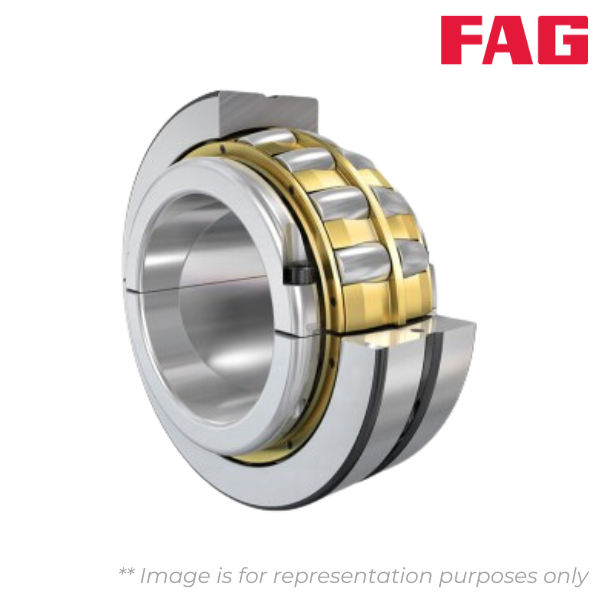

Category - Split Spherical Roller Bearing
Weight (m) kg - 11.2
Inner Diameter (d) mm - 115
Outer Diameter (D) mm - 210
Outer Ring Width (C) mm - 64
Inner Ring Width (B) mm - 104
Minimum Chamfer Dimension (r) mm - 2
Basic Radial Dynamic Load Rating (Cr) kN - 490
Basic Radial Static Load Rating (C0r) kN - 710
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.28
Dynamic Axial Load Factor (Y1) - 2.39
Dynamic Axial Load Factor (Y2) - 3.56
Static Axial Load Factor (Y0) - 2.34
Fatigue Radial Load Limit (Cur) kN - 49.5
