Description
Brand - FAG
Item Number - 234408-M-SP FAG
Category - Axial Angular Contact Ball Bearing
Weight (m) kg - 0.463
Inner Diameter (d) mm - 40
Outer Diameter (D) mm - 68
Width (B) mm - 36
Width, outer ring (C) mm - 18
Rip Diameter Shaft Washer (d1) mm - 58.5
Height Wave Disc (B1) mm - 9
Minimum Chamfer Dimension (rmin) mm - 1
Minimum Chamfer Dimension (r1min) mm - 0.15
Diameter Lubrication Hole (ds) mm - 3.2
Width of Lubricating Groove (ns) mm - 4.8

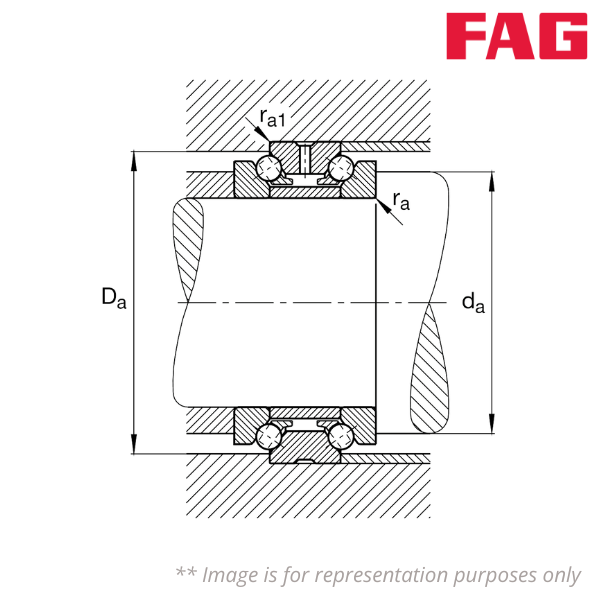

Diameter Shaft Shoulder Clearance - h12
Diameter Shaft Shoulder (da) mm - 51.5
Shoulder Diameter Outer Ring Clearance - H12
Shoulder Diameter Outer Ring (Da) mm - 63.5
Basic Dynamic Load Rating, Axial (Ca) N - 22800
Basic Static Load Rating, Axial (C0a) N - 58000
Limiting Speed for Grease Lubrication (nG grease) min⁻¹ - 8500
Limiting Speed for Oil Lubrication (nG oil) min⁻¹ - 12000
Preload Force (Fv) N - 160
Lift-off Force (KaE) N - 456
Axial Rigidity (ca) N/µm - 355
