Description
Brand - FAG
Item Number - 234411-M-SP FAG
Category - Axial Angular Contact Ball Bearing
Weight (m) kg - 0.944
Inner Diameter (d) mm - 55
Outer Diameter (D) mm - 90
Width (B) mm - 44
Width, outer ring (C) mm - 22
Rip Diameter Shaft Washer (d1) mm - 78
Height Wave Disc (B1) mm - 11
Minimum Chamfer Dimension (rmin) mm - 1.1
Minimum Chamfer Dimension (r1min) mm - 0.3
Diameter Lubrication Hole (ds) mm - 3.2
Width of Lubricating Groove (ns) mm - 6.5

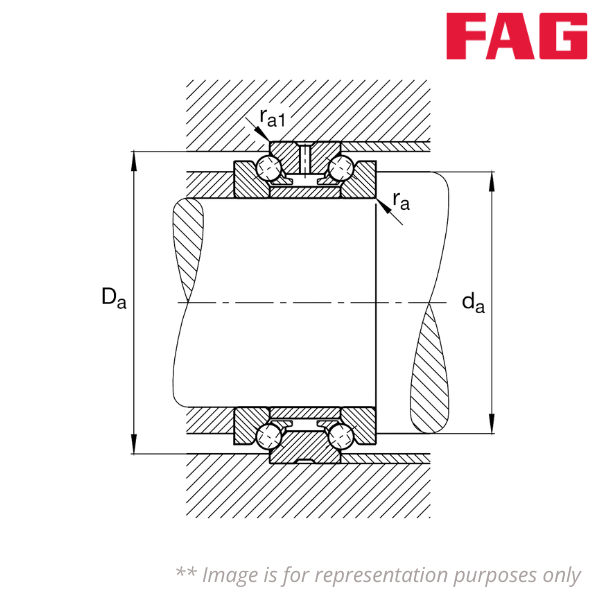

Diameter Shaft Shoulder Clearance - h12
Diameter Shaft Shoulder (da) mm - 69
Shoulder Diameter Outer Ring Clearance - H12
Shoulder Diameter Outer Ring (Da) mm - 84.5
Basic Dynamic Load Rating, Axial (Ca) N - 37500
Basic Static Load Rating, Axial (C0a) N - 102000
Limiting Speed for Grease Lubrication (nG grease) min⁻¹ - 6300
Limiting Speed for Oil Lubrication (nG oil) min⁻¹ - 8500
Preload Force (Fv) N - 260
Lift-off Force (KaE) N - 743
Axial Rigidity (ca) N/µm - 458
