Description
Brand - FAG
Item Number - 234415-M-SP FAG
Category - Axial Angular Contact Ball Bearing
Weight (m) kg - 1.57
Inner Diameter (d) mm - 75
Outer Diameter (D) mm - 115
Width (B) mm - 48
Width, outer ring (C) mm - 24
Rip Diameter Shaft Washer (d1) mm - 102
Height Wave Disc (B1) mm - 12
Minimum Chamfer Dimension (rmin) mm - 1.1
Minimum Chamfer Dimension (r1min) mm - 0.3
Diameter Lubrication Hole (ds) mm - 3.2
Width of Lubricating Groove (ns) mm - 6.5

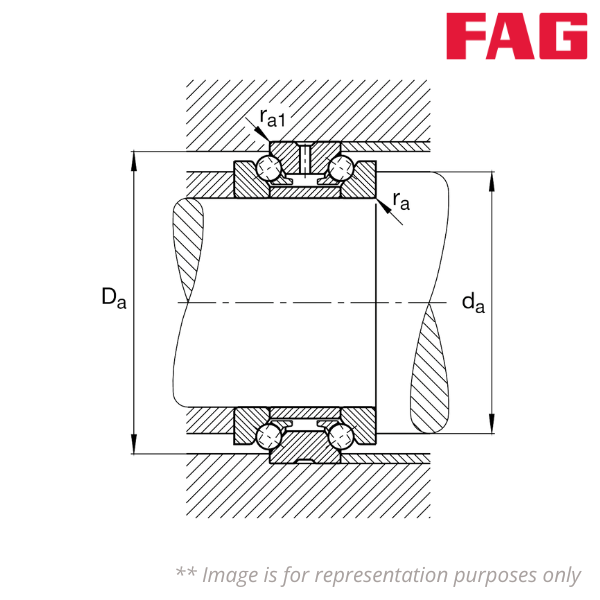

Diameter Shaft Shoulder Clearance - h12
Diameter Shaft Shoulder (da) mm - 91.5
Shoulder Diameter Outer Ring Clearance - H12
Shoulder Diameter Outer Ring (Da) mm - 108.5
Basic Dynamic Load Rating, Axial (Ca) N - 47500
Basic Static Load Rating, Axial (C0a) N - 144000
Limiting Speed for Grease Lubrication (nG grease) min⁻¹ - 5000
Limiting Speed for Oil Lubrication (nG oil) min⁻¹ - 6700
Preload Force (Fv) N - 340
Lift-off Force (KaE) N - 969
Axial Rigidity (ca) N/µm - 589
