Description
Brand - FAG
Item Number - 234416-M-SP FAG
Category - Axial Angular Contact Ball Bearing
Weight (m) kg - 2.16
Inner Diameter (d) mm - 80
Outer Diameter (D) mm - 125
Width (B) mm - 54
Width, outer ring (C) mm - 27
Rip Diameter Shaft Washer (d1) mm - 110
Height Wave Disc (B1) mm - 13.5
Minimum Chamfer Dimension (rmin) mm - 1.1
Minimum Chamfer Dimension (r1min) mm - 0.3
Diameter Lubrication Hole (ds) mm - 3.2
Width of Lubricating Groove (ns) mm - 6.5

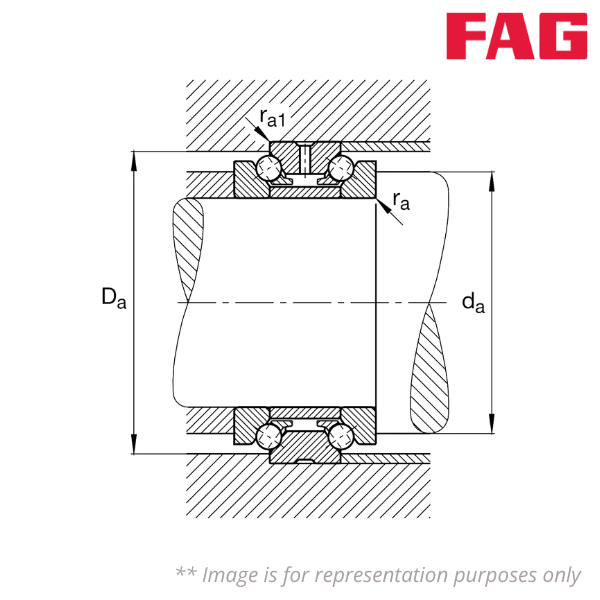

Diameter Shaft Shoulder Clearance - h12
Diameter Shaft Shoulder (da) mm - 98.5
Shoulder Diameter Outer Ring Clearance - H12
Shoulder Diameter Outer Ring (Da) mm - 117
Basic Dynamic Load Rating, Axial (Ca) N - 57000
Basic Static Load Rating, Axial (C0a) N - 173000
Limiting Speed for Grease Lubrication (nG grease) min⁻¹ - 4500
Limiting Speed for Oil Lubrication (nG oil) min⁻¹ - 6000
Preload Force (Fv) N - 400
Lift-off Force (KaE) N - 1140
Axial Rigidity (ca) N/µm - 640
