Description
Brand - FAG
Item Number - 234424-M-SP FAG
Category - Axial Angular Contact Ball Bearing
Weight (m) kg - 5.56
Inner Diameter (d) mm - 120
Outer Diameter (D) mm - 180
Width (B) mm - 72
Width, outer ring (C) mm - 36
Rip Diameter Shaft Washer (d1) mm - 160
Height Wave Disc (B1) mm - 18
Minimum Chamfer Dimension (rmin) mm - 2
Minimum Chamfer Dimension (r1min) mm - 0.6
Diameter Lubrication Hole (ds) mm - 4.8
Width of Lubricating Groove (ns) mm - 9.5

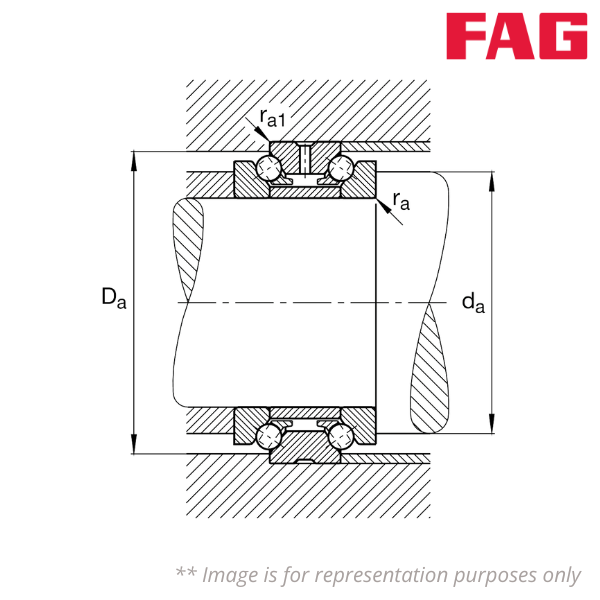

Diameter Shaft Shoulder Clearance - h12
Diameter Shaft Shoulder (da) mm - 144.5
Shoulder Diameter Outer Ring Clearance - H12
Shoulder Diameter Outer Ring (Da) mm - 170
Basic Dynamic Load Rating, Axial (Ca) N - 101000
Basic Static Load Rating, Axial (C0a) N - 350000
Limiting Speed for Grease Lubrication (nG grease) min⁻¹ - 3200
Limiting Speed for Oil Lubrication (nG oil) min⁻¹ - 4300
Preload Force (Fv) N - 960
Lift-off Force (KaE) N - 2736
Axial Rigidity (ca) N/µm - 996
