Description
Brand - FAG
Item Number - 234428-M-SP FAG
Category - Axial Angular Contact Ball Bearing
Weight (m) kg - 8.78
Inner Diameter (d) mm - 140
Outer Diameter (D) mm - 210
Width (B) mm - 84
Width, outer ring (C) mm - 42
Rip Diameter Shaft Washer (d1) mm - 187
Height Wave Disc (B1) mm - 21
Minimum Chamfer Dimension (rmin) mm - 2.1
Minimum Chamfer Dimension (r1min) mm - 0.6
Diameter Lubrication Hole (ds) mm - 6.3
Width of Lubricating Groove (ns) mm - 12.2

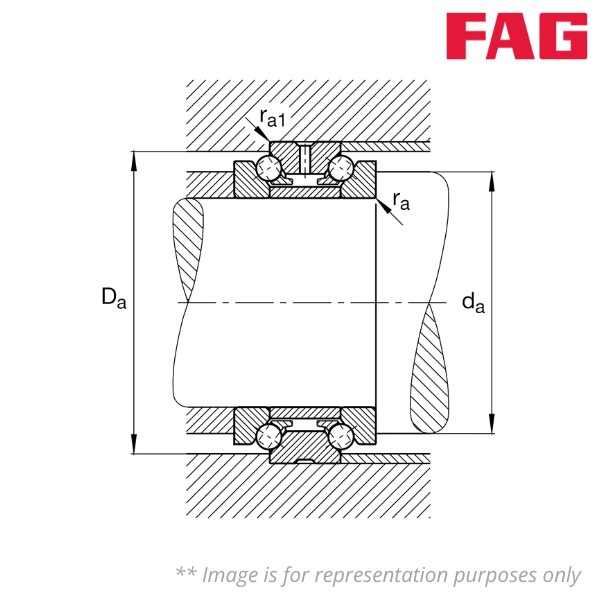

Diameter Shaft Shoulder Clearance - h12
Diameter Shaft Shoulder (da) mm - 169
Shoulder Diameter Outer Ring Clearance - H12
Shoulder Diameter Outer Ring (Da) mm - 198
Basic Dynamic Load Rating, Axial (Ca) N - 132000
Basic Static Load Rating, Axial (C0a) N - 470000
Limiting Speed for Grease Lubrication (nG grease) min⁻¹ - 2600
Limiting Speed for Oil Lubrication (nG oil) min⁻¹ - 3600
Preload Force (Fv) N - 930
Lift-off Force (KaE) N - 2649
Axial Rigidity (ca) N/µm - 1034
