Description
Brand - FAG
Item Number - 234436-M-SP FAG
Category - Axial Angular Contact Ball Bearing
Weight (m) kg - 23.4
Inner Diameter (d) mm - 180
Outer Diameter (D) mm - 280
Width (B) mm - 120
Width, outer ring (C) mm - 60
Rip Diameter Shaft Washer (d1) mm - 248
Height Wave Disc (B1) mm - 30
Minimum Chamfer Dimension (rmin) mm - 2.1
Minimum Chamfer Dimension (r1min) mm - 0.6
Diameter Lubrication Hole (ds) mm - 8
Width of Lubricating Groove (ns) mm - 15

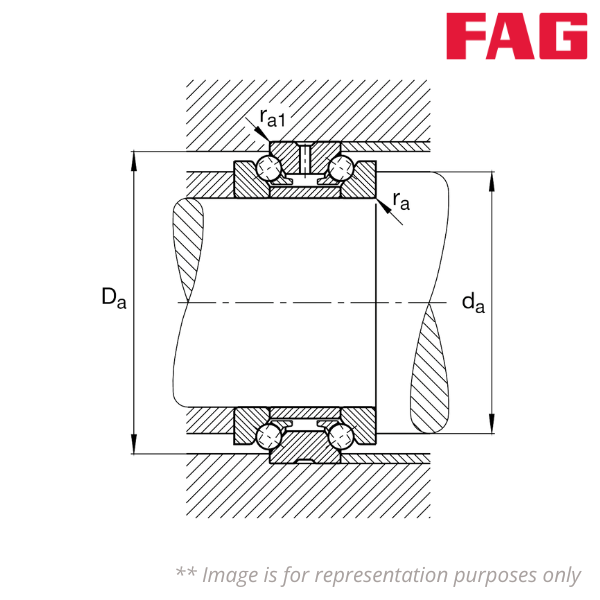

Diameter Shaft Shoulder Clearance - h12
Diameter Shaft Shoulder (da) mm - 221
Shoulder Diameter Outer Ring Clearance - H12
Shoulder Diameter Outer Ring (Da) mm - 263
Basic Dynamic Load Rating, Axial (Ca) N - 237000
Basic Static Load Rating, Axial (C0a) N - 880000
Limiting Speed for Grease Lubrication (nG grease) min⁻¹ - 2000
Limiting Speed for Oil Lubrication (nG oil) min⁻¹ - 3000
Preload Force (Fv) N - 1660
Lift-off Force (KaE) N - 4733
Axial Rigidity (ca) N/µm - 1315
