Description
Brand - FAG
Item Number - 234440-M-SP FAG
Category - Axial Angular Contact Ball Bearing
Weight (m) kg - 31.5
Inner Diameter (d) mm - 200
Outer Diameter (D) mm - 310
Width (B) mm - 132
Width, outer ring (C) mm - 66
Rip Diameter Shaft Washer (d1) mm - 274
Height Wave Disc (B1) mm - 33
Minimum Chamfer Dimension (rmin) mm - 2.1
Minimum Chamfer Dimension (r1min) mm - 0.6
Diameter Lubrication Hole (ds) mm - 8
Width of Lubricating Groove (ns) mm - 15

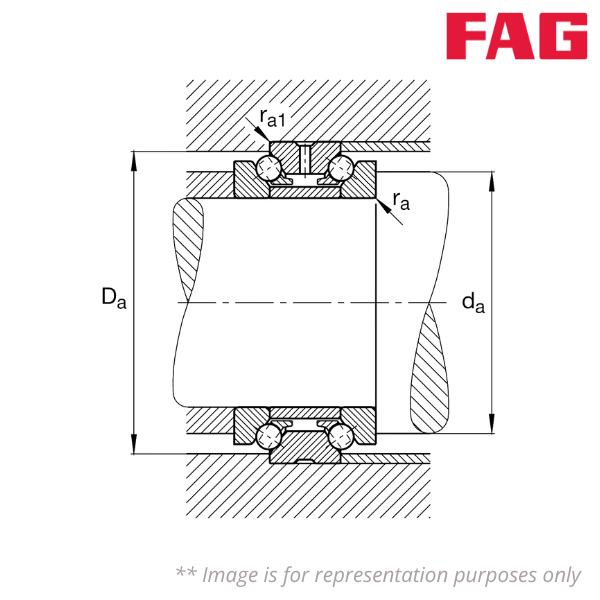

Diameter Shaft Shoulder Clearance - h12
Diameter Shaft Shoulder (da) mm - 245
Shoulder Diameter Outer Ring Clearance - H12
Shoulder Diameter Outer Ring (Da) mm - 291.5
Basic Dynamic Load Rating, Axial (Ca) N - 280000
Basic Static Load Rating, Axial (C0a) N - 1060000
Limiting Speed for Grease Lubrication (nG grease) min⁻¹ - 1800
Limiting Speed for Oil Lubrication (nG oil) min⁻¹ - 2600
Preload Force (Fv) N - 2000
Lift-off Force (KaE) N - 5704
Axial Rigidity (ca) N/µm - 1449
