Description
Brand - TIMKEN
Item Number - 23685/23620 TIMKEN
Also Known As - 23685 - 23620
Category - Single Row Tapered Roller Bearing (TS Type)

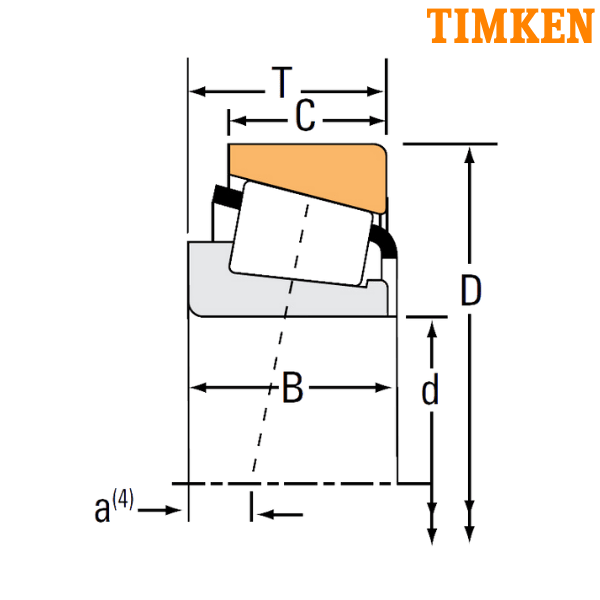

Bore Diameter (d) mm - 31.75
Bore Diameter (d) inch - 1.25
Outer Diameter (D) mm - 73.025
Outer Diameter (D) inch - 2.875
Width (T) mm - 26.988
Width (T) inch - 1.0625
Dynamic Load Rating (C1) N - 89400
Dynamic Load Rating (C1) lbf - 20100
Factor (e) - 0.37
Factor (Y) - 1.62
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 23200
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 5210
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 14700
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 3300
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.58
Basic Static Radial Load Rating (C0) N - 102000
Basic Static Radial Load Rating (C0) lbf - 22900
Cone Width (B) mm - 26.975
Cone Width (B) inch - 1.062
Cup Width (C) mm - 22.225
Cup Width (C) inch - 0.875
Effective Center Location (a) mm - -8.1
Effective Center Location (a) inch - -0.32

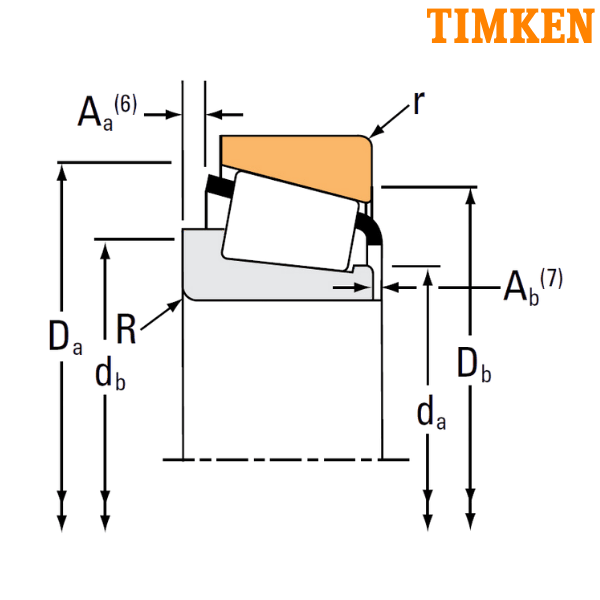

Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14
Cone Frontface Backing Diameter (da) mm - 40
Cone Frontface Backing Diameter (da) inch - 1.57
Cone Backface Backing Diameter (db) mm - 46
Cone Backface Backing Diameter (db) inch - 1.81
Max Housing Fillet Radius (r) mm - 1.5
Max Housing Fillet Radius (r) inch - 0.06
Cup Frontface Backing Diameter (Da) mm - 68
Cup Frontface Backing Diameter (Da) inch - 2.68
Cup Backface Backing Diameter (Db) mm - 63
Cup Backface Backing Diameter (Db) inch - 2.48
Cage-Cone Backface Clearance (Aa) mm - 1.7
Cage-Cone Backface Clearance (Aa) inch - 0.06
Cage-Cone Frontface Clearance (Ab) mm - 0.8
Cage-Cone Frontface Clearance (Ab) inch - 0.03
Geometry Factor (G1) - 24.4
Geometry Factor (G2) - 10.7
Geometry Factor (Cg) - 0.0734
Weight (kg) - 0.55
Weight (lbs) - 1.22
Inner Part Number - 23685
Outer Part Number - 23620
TS - Single Row Tapered Roller Bearing

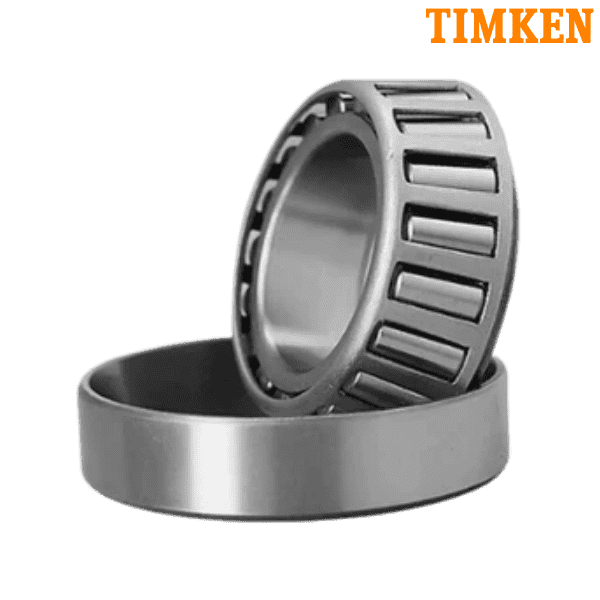

** Images are for representation purposes only
