Description
Brand - FAG
Item Number - 239SM560-MA FAG

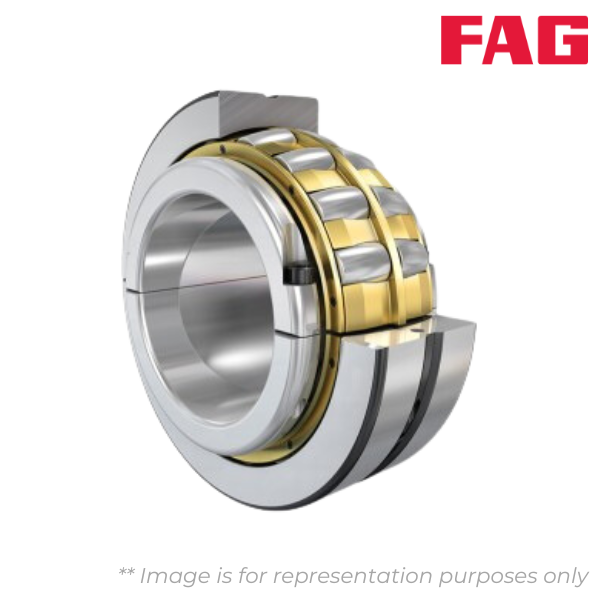

Category - Split Spherical Roller Bearing
Weight (m) kg - 347

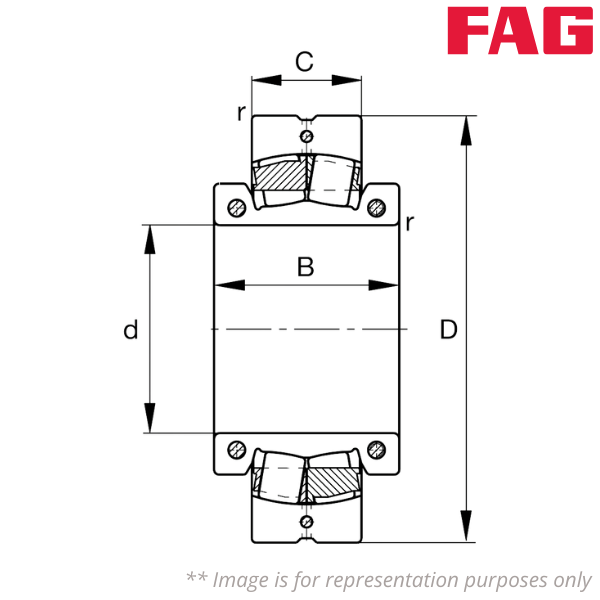

Inner Diameter (d) mm - 560
Outer Diameter (D) mm - 800
Outer Ring Width (C) mm - 150
Inner Ring Width (B) mm - 235
Minimum Chamfer Dimension (r) mm - 5
Basic Radial Dynamic Load Rating (Cr) kN - 2900
Basic Radial Static Load Rating (C0r) kN - 7100
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.17
Dynamic Axial Load Factor (Y1) - 3.95
Dynamic Axial Load Factor (Y2) - 5.88
Static Axial Load Factor (Y0) - 3.86
Fatigue Radial Load Limit (Cur) kN - 530
Maximum Axial Load (Fa) - 60
Limiting speed (nG) min–1 - 170
Tightening Torque Clamping Screw (Ni) Nm - 295
Tightening Torque Clamping Screw (Ma) Nm - 69
Bearing Designation - 239/600K
Adapter Sleeve - H39/600HG
