Description
Brand - FAG
Item Number - 24056-BE-XL-C4 FAG
Category - Spherical Roller Bearing
Also known as - 0688373990040 24056-BE-C4
EAN - 4047643122795
Inner (d) MM - 280
Outer (D) MM - 420
Width (B) MM - 140
Inner (d) Inch - 11.0236
Outer (D) Inch - 16.5354
Width (B) Inch - 5.5118
Weight (kg) - 68
Bore - C - Cylindrical Bore
Lubrication Enhancement - W33 - Lubrication Groove and 3 Holes
Seal - No Seal
Cage Type - S - Steel or Standard Cage
Radial Internal Play - C4 Internal Play (Higher than C3)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Non Vibrating Screen Execution
Radial Static Load Rating C0r (N) - 3950000
Radial Dynamic Load Rating Cr (N) - 2290000

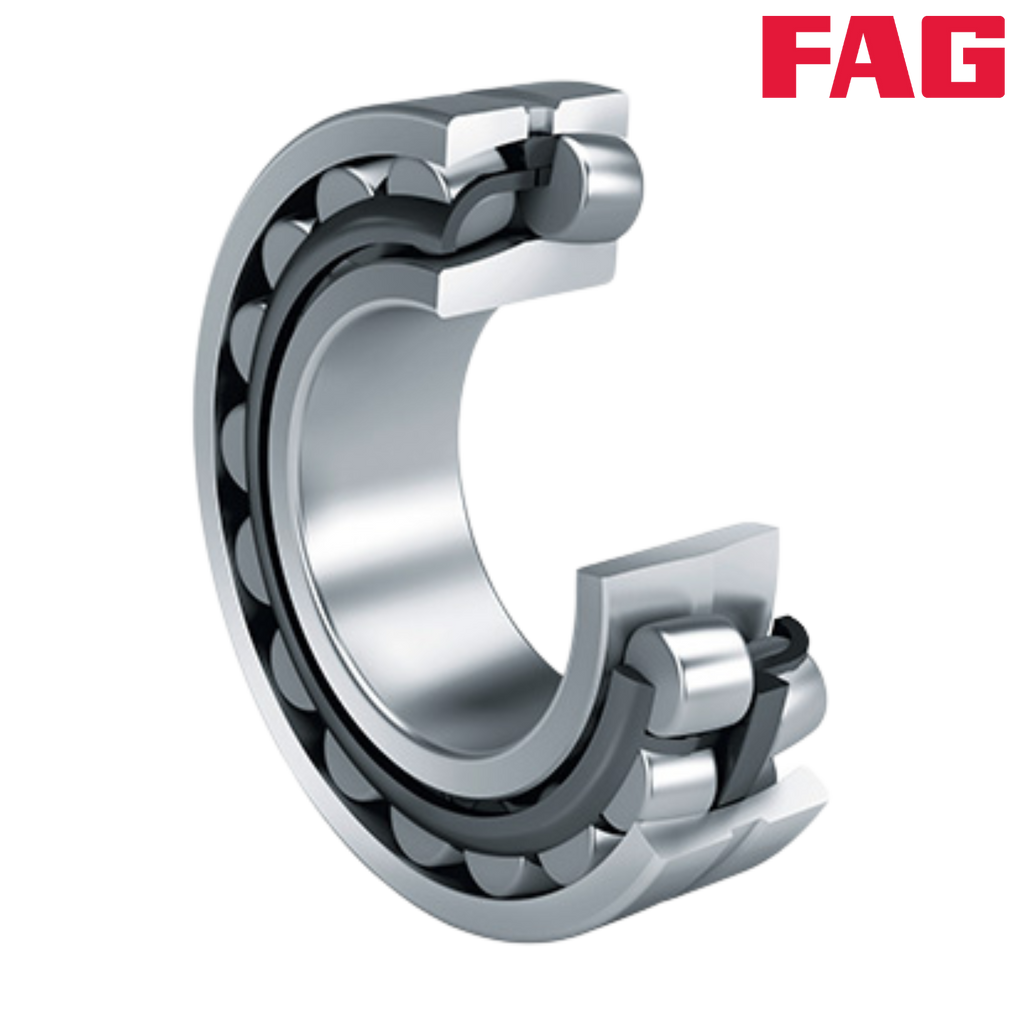

** Image is for representation purposes only
