Description
Brand - FAG
Item Number - 24056-BE-XL-T52BW-C5 FAG
Category - Spherical Roller Bearing
Also known as - 0719898380050 24056-BE-T52BW-C5
EAN - 4047643151825
Inner (d) MM - 280
Outer (D) MM - 420
Width (B) MM - 140
Weight (kg) - 68
Bore - C - Cylindrical Bore
Lubrication Enhancement - W33 - Lubrication Groove and 3 Holes
Seal - No Seal
Cage Type - S - Steel or Standard Cage
Radial Internal Play - C5 Internal Play (Higher than C4)
Precision - Higher Running Acc. ISO Cl.5
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Non Vibrating Screen Execution
Radial Static Load Rating C0r (N) - 3950000
Radial Dynamic Load Rating Cr (N) - 2290000

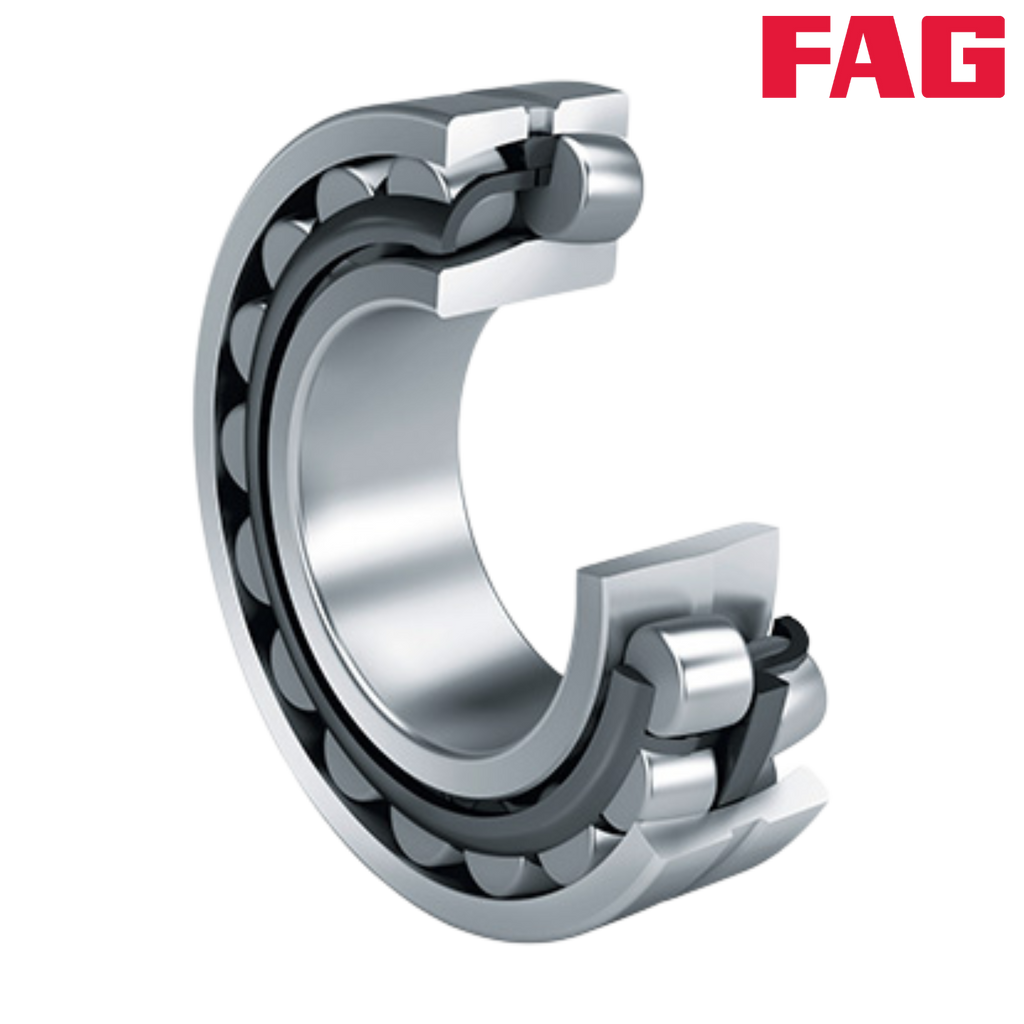

** Image is for representation purposes only
