Description
Brand - FAG
Item Number - 24124-BE-XL-C3 FAG
Category - Spherical Roller Bearing
Also known as - 0581116540030 24124-BE-C3
EAN - 4012802299847
Inner (d) MM - 120
Outer (D) MM - 200
Width (B) MM - 80
Inner (d) Inch - 4.7244
Outer (D) Inch - 7.874
Width (B) Inch - 3.1496
Weight (kg) - 10.7
Bore - C - Cylindrical Bore
Lubrication Enhancement - W33 - Lubrication Groove and 3 Holes
Seal - No Seal
Cage Type - S - Steel or Standard Cage
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Non Vibrating Screen Execution
Radial Static Load Rating C0r (N) - 950000
Radial Dynamic Load Rating Cr (N) - 680000

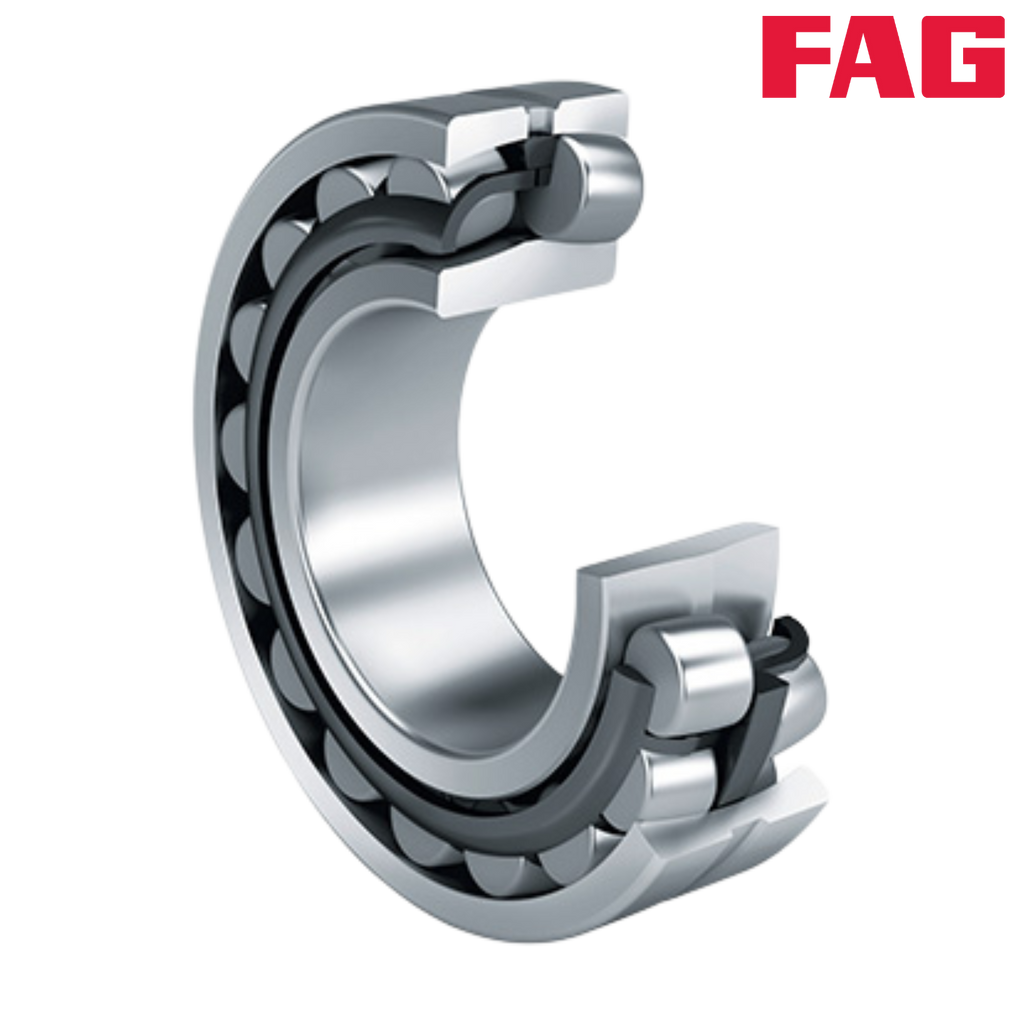

** Image is for representation purposes only
