Description
Brand - FAG
Item Number - 24126-BE-XL-C3 FAG
Category - Spherical Roller Bearing
Also known as - 0575612490030 24126-BE-C3
EAN - 4012802288285
Inner (d) MM - 130
Outer (D) MM - 210
Width (B) MM - 80
Inner (d) Inch - 5.1181
Outer (D) Inch - 8.2677
Width (B) Inch - 3.1496
Weight (kg) - 10.8
Bore - C - Cylindrical Bore
Lubrication Enhancement - W33 - Lubrication Groove and 3 Holes
Seal - No Seal
Cage Type - S - Steel or Standard Cage
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Non Vibrating Screen Execution
Radial Static Load Rating C0r (N) - 1050000
Radial Dynamic Load Rating Cr (N) - 710000

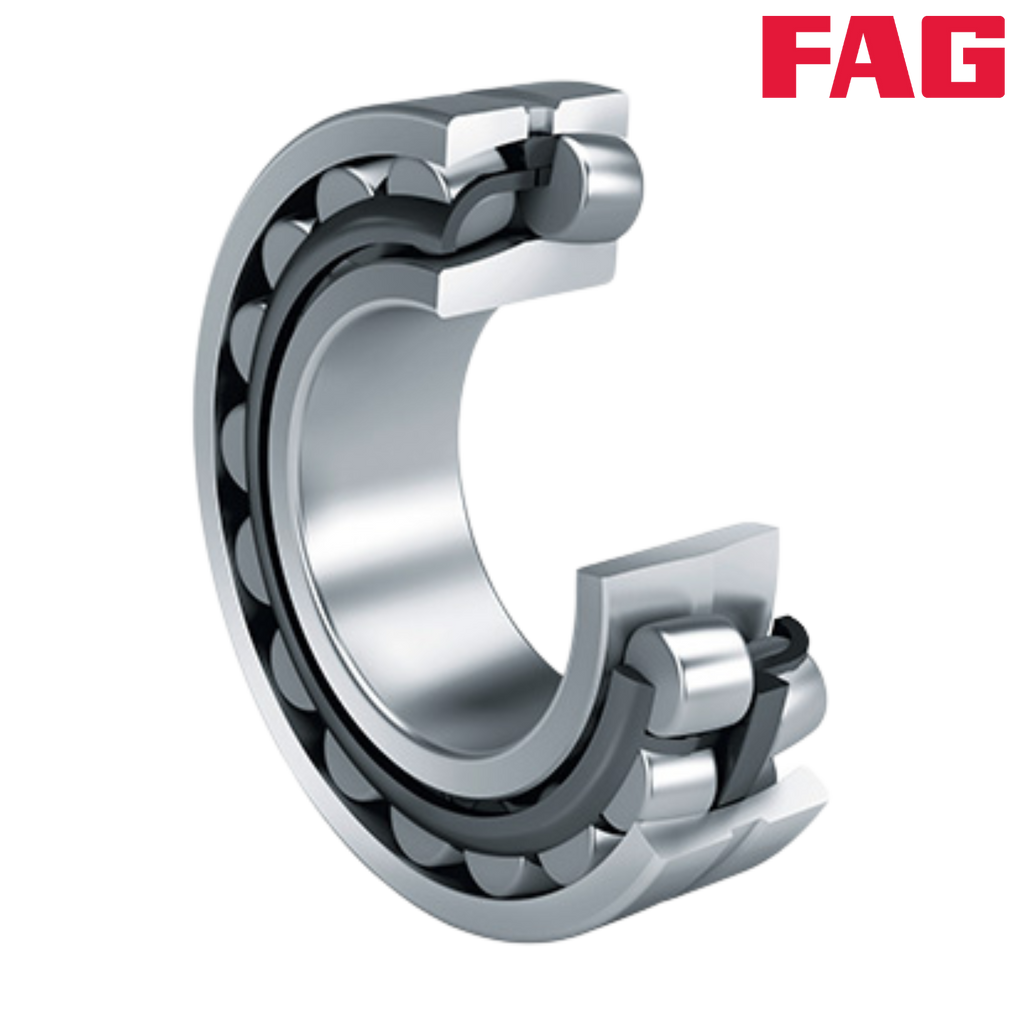

** Image is for representation purposes only
