Description
Brand - FAG
Item Number - 24134-BE-XL-2VSR-H40-C3 FAG
Category - Spherical Roller Bearing
Also known as - 0844559340030 24134-BE-2VSR-H40-C3
EAN - 4054369602166
Inner (d) MM - 170
Outer (D) MM - 280
Width (B) MM - 109
Inner (d) Inch - 6.6929
Outer (D) Inch - 11.0236
Width (B) Inch - 4.2913
Weight (kg) - 26.4
Bore - C - Cylindrical Bore
Lubrication Enhancement - W - No Lubrication Groove or Holes
Seal - 2RS2 - Fluoro Rubber Seals / High Temperature
Cage Type - S - Steel or Standard Cage
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Non Vibrating Screen Execution

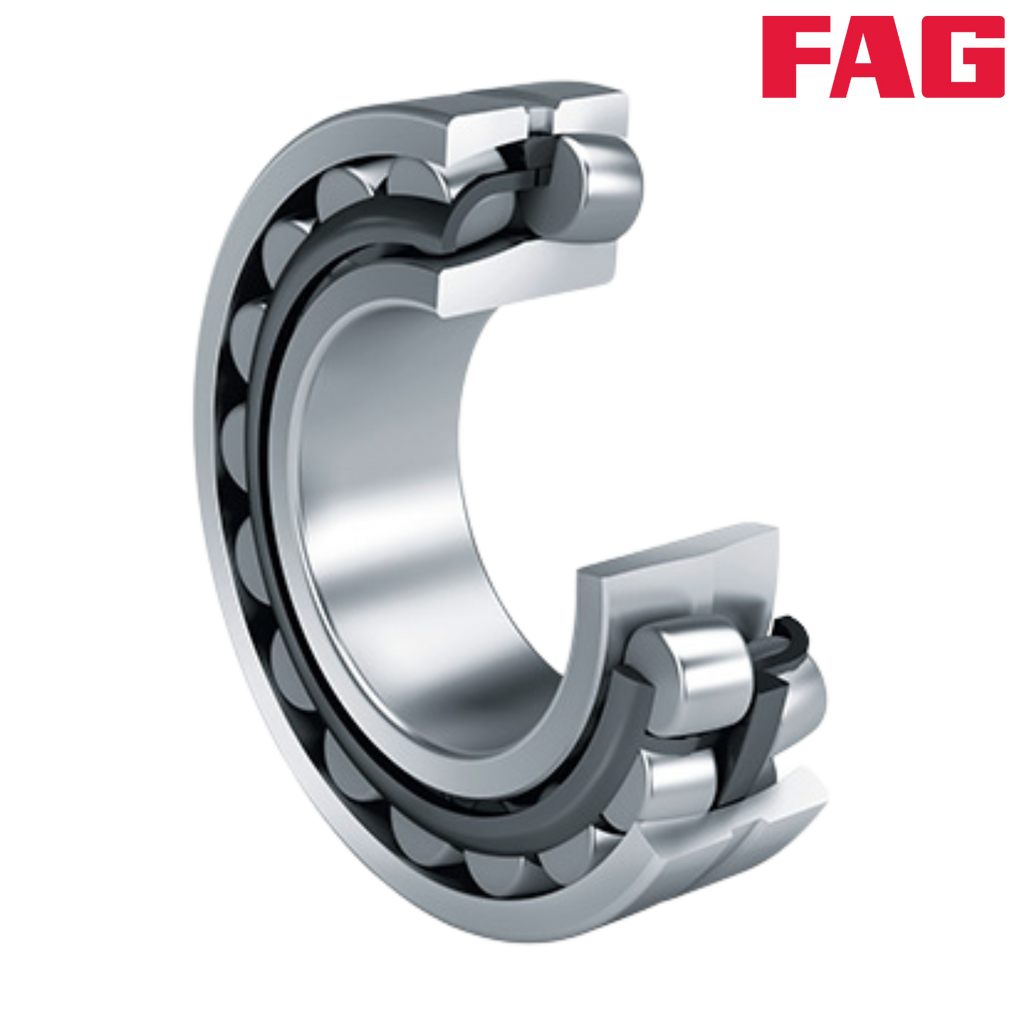

** Image is for representation purposes only
