| Outer Diameter | 641.35 mm |
| Height | 184.15 mm |
| Feature Diameter | 558.8 mm |
| Bearing Weight | 580.0 kg |
| Basic Static Load Rating, Axial | 52930000.0 N |
| Outer Diameter Of Shaft Washer | 638.988 mm |
| Shaft Washer Height | 38.1 mm |
| Spherical Radius | 762.0 mm |
| Maximum Housing Chamfer Diameter | 6.4 mm |
Description

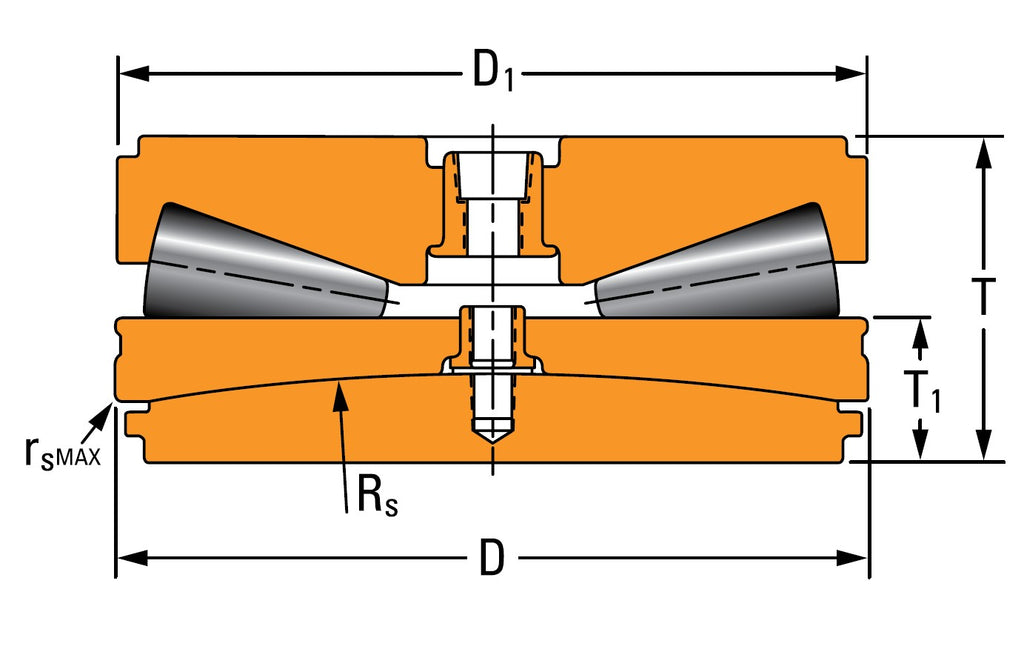

Dimension Denotation of Diagram :
d – Inner Diameter
D – Outer Diameter
D1 – Outer Diameter Of Shaft Washer
T – Height
H – Feature Diameter
Rs – Spherical Radius
R – Maximum Shaft Chamfer Diameter
rs max – Maximum Housing Chamfer Diameter
Other salient points to be noted:
The Timken TTHDFLSV-2 is a heavy-duty, three-ring thrust tapered roller bearing explicitly designed for rolling mill screw-down systems. Incorporating a bottom aligning plate and a uniquely profiled lower race, it offers superior alignment compensation and load handling in extreme environments.
-
Industry Specific: Purpose-built for rolling mill screw-down systems.
-
High Load Capacity: Full complement (cageless) configuration.
-
Three-Ring Construction: Utilizes a specialized three-ring design.
-
Bottom Aligning Plate: Includes one bottom aligning plate for operational stability.
-
Race Profiles: Features one lower flat race with a special convex profile and one standard upper tapered race.
** Images are for representation purposes only
