Description
Brand - TIMKEN

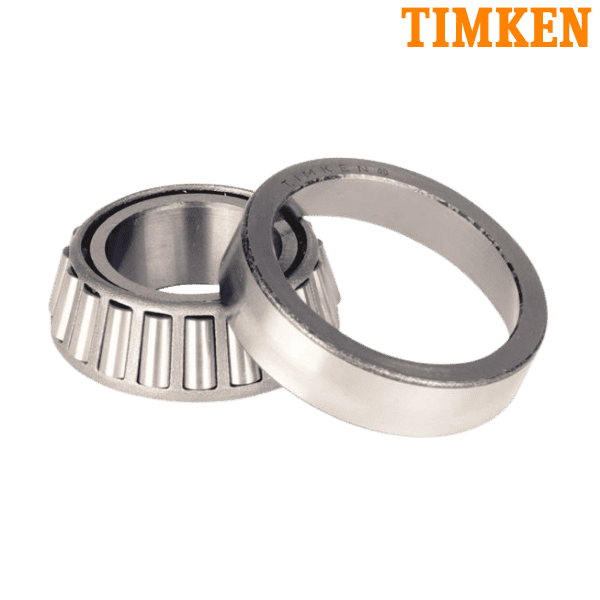

Item Number - 29585-29520 TIMKEN
Category - Precision Tapered Roller Bearing - TS (Tapered Single) Style

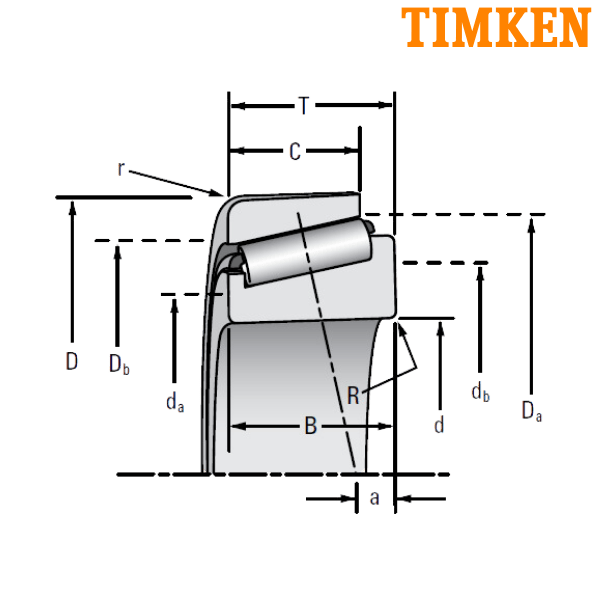

Bore Diameter (d) mm - 63.5
Bore Diameter (d) inch - 2.5
Outer Diameter (D) mm - 107.95
Outer Diameter (D) inch - 4.25
Width (T) mm - 25.4
Width (T) inch - 1
Static Radial Rating (C0) kN - 158
Static Radial Rating (C0) lbs - 35500
Dynamic Radial Rating (1 million revolutions) (C1) kN - 102
Dynamic Radial Rating (1 million revolutions) (C1) lbs - 22900
Dynamic Radial Rating (90 million revolutions) (C90) kN - 26.5
Dynamic Radial Rating (90 million revolutions) (C90) lbs - 5950
Dynamic Thrust Rating (90 million revolutions) (Ca90) kN - 20.8
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbs - 4670
Cone Width (B) mm - 25.4
Cone Width (B) inch - 1
Cup Width (C) mm - 19.05
Cup Width (C) inch - 0.75
Effective Center Location (a) mm - -0.8
Effective Center Location (a) inch - -0.03
Maximum Shaft Fillet Radius at Cone Backface (R) mm - 3.6
Maximum Shaft Fillet Radius at Cone Backface (R) inch - 0.14
Cone Frontface Backing Diameter (da) mm - 71.1
Cone Frontface Backing Diameter (da) inch - 2.8
Cone Backface Backing Diameter (db) mm - 77
Cone Backface Backing Diameter (db) inch - 3.03
Maximum Housing Fillet Radius at Cup Backface (r) mm - 3.3
Maximum Housing Fillet Radius at Cup Backface (r) inch - 0.13
Cup Frontface Backing Diameter (Da) mm - 103.1
Cup Frontface Backing Diameter (Da) inch - 4.06
Cup Backface Backing Diameter (Db) mm - 96
Cup Backface Backing Diameter (Db) inch - 3.78
Stiffness (Kr10^6) N/mm - 2.15
Stiffness (Kr10^6) lbs/in - 12.3
Stiffness (Fr) kN - 2.65
Stiffness (Fr) lbs - 595
Stiffness (Ka10) N/mm - 0.385
Stiffness (Ka10) lbs/in - 2.2
Stiffness (Fa) kN - 2.07
Stiffness (Fa) lbs - 466
Speed Rating (RPM) - 4500
Weight (kg) - 0.91
Weight (lbs) - 2.01
** Images are for representation purposes only
