Description
Brand - TIMKEN
Item Number - 2975/2924 TIMKEN
Also Known As - 2975 - 2924
Category - Single Row Tapered Roller Bearing (TS Type)
Bore Diameter (d) mm - 44.45
Bore Diameter (d) inch - 1.75
Outer Diameter (D) mm - 85
Outer Diameter (D) inch - 3.3465
Width (T) mm - 25.4
Width (T) inch - 1
Dynamic Load Rating (C1) N - 93300
Dynamic Load Rating (C1) lbf - 21000
Factor (e) - 0.35
Factor (Y) - 1.73
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 24200
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 5440
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 14300
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 3220
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.69
Basic Static Radial Load Rating (C0) N - 117000
Basic Static Radial Load Rating (C0) lbf - 26200
Cone Width (B) mm - 25.608
Cone Width (B) inch - 1.0082
Cup Width (C) mm - 20.638
Cup Width (C) inch - 0.8125
Effective Center Location (a) mm - -6.4
Effective Center Location (a) inch - -0.25

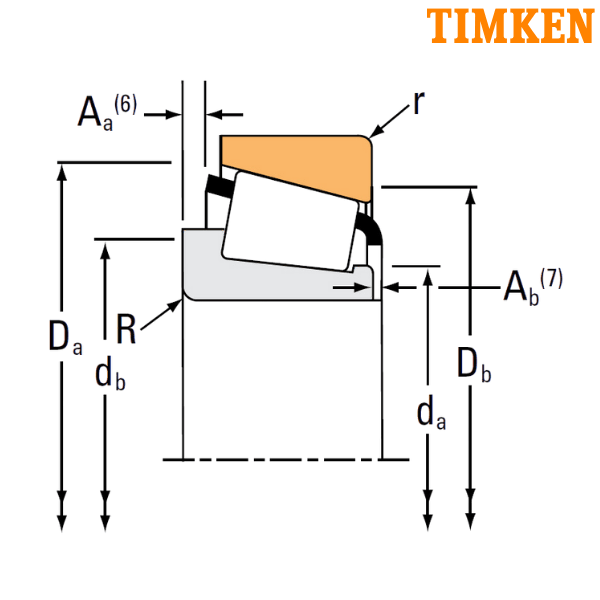

Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14
Cone Frontface Backing Diameter (da) mm - 51
Cone Frontface Backing Diameter (da) inch - 2.01
Cone Backface Backing Diameter (db) mm - 57
Cone Backface Backing Diameter (db) inch - 2.24
Max Housing Fillet Radius (r) mm - 1.3
Max Housing Fillet Radius (r) inch - 0.05
Cup Frontface Backing Diameter (Da) mm - 80
Cup Frontface Backing Diameter (Da) inch - 3.15
Cup Backface Backing Diameter (Db) mm - 76
Cup Backface Backing Diameter (Db) inch - 2.99
Cage-Cone Backface Clearance (Aa) mm - 1.7
Cage-Cone Backface Clearance (Aa) inch - 0.07
Cage-Cone Frontface Clearance (Ab) mm - 1.1
Cage-Cone Frontface Clearance (Ab) inch - 0.05
Geometry Factor (G1) - 38.2
Geometry Factor (G2) - 15.7
Geometry Factor (Cg) - 0.0832
Weight (kg) - 0.63
Weight (lbs) - 1.39
Inner Part Number - 2975
Outer Part Number - 2924
TS - Single Row Tapered Roller Bearing
** Images are for representation purposes only
