Description
Brand - FAG
Item Number - 3003-B-2RS-TVH FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 17
Outside Diameter (D) mm - 35
Width (B) mm - 14
Basic Dynamic Load Rating, Radial (Cr) N - 9100
Basic Static Load Rating, Radial (C0r) N - 6100
Fatigue Load Limit, Radial (Cur) N - 315
Limiting Speed (nG) min–1 - 12300
Weight (m) kg - 0.055
Minimum Chamfer Dimension (r min) mm - 0.3
Caliber Diameter Outer Ring (D2) mm - 29.8
Caliber Diamter Inner Ring (d2) mm - 21
Distance Between the Apexes of the Pressure Cones (a) mm - 17.1
Nominal Contact Angle (α)° - 25

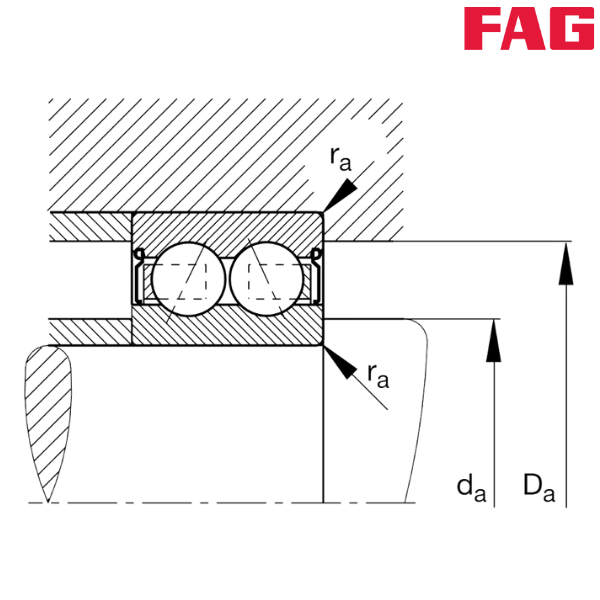

Minimum Diameter Shaft Shoulder (da) mm - 19
Maximum Diameter of Housing Shoulder (Da) mm - 33
Maximum Fillet Radius (ra) mm - 0.3
Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
TVH - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
2RS - Contact Seal on Both Sides (Lip Seal)
** Images are for representation purposes only
