Description
Brand - FAG
Item Number - 3004-B-TVH FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 20
Outside Diameter (D) mm - 42
Width (B) mm - 16
Basic Dynamic Load Rating, Radial (Cr) N - 14300
Basic Static Load Rating, Radial (C0r) N - 9400
Fatigue Load Limit, Radial (Cur) N - 490
Limiting Speed (nG) min–1 - 18100
Reference Speed (nϑr) min–1 - 13200
Weight (m) kg - 0.08
Minimum Chamfer Dimension (r min) mm - 0.6
Shoulder Diameter Outer Ring (D1) mm - 35
Shoulder Diameter Inner Ring (d1) mm - 27.1
Distance Between the Apexes of the Pressure Cones (a) mm - 21.1
Nominal Contact Angle (α)° - 25

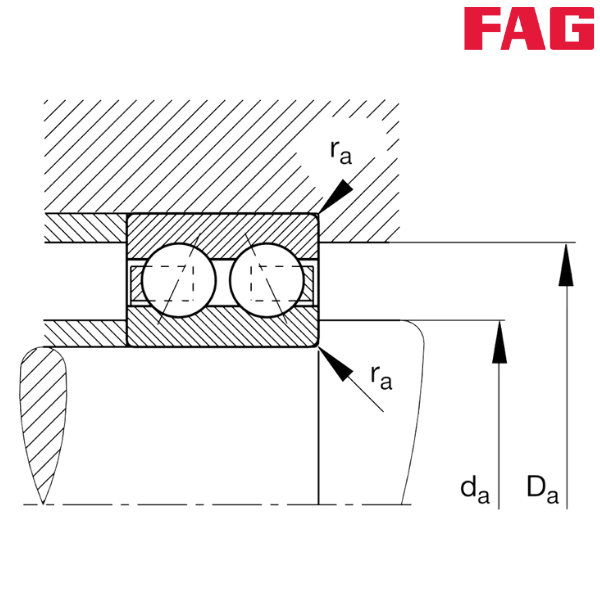

Minimum Diameter Shaft Shoulder (da) mm - 23.2
Maximum Diameter of Housing Shoulder (Da) mm - 38.8
Maximum Fillet Radius (ra) mm - 0.6
Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
TVH - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
** Images are for representation purposes only
