Description
Brand - FAG
Item Number - 3005-B-2RZ-TVH FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 25
Outside Diameter (D) mm - 47
Width (B) mm - 16
Basic Dynamic Load Rating, Radial (Cr) N - 15200
Basic Static Load Rating, Radial (C0r) N - 10900
Fatigue Load Limit, Radial (Cur) N - 570
Limiting Speed (nG) min–1 - 11900
Reference Speed (nϑr) min–1 - 11100
Weight (m) kg - 0.1
Minimum Chamfer Dimension (r min) mm - 0.6
Caliber Diameter Outer Ring (D2) mm - 41.8
Caliber Diamter Inner Ring (d2) mm - 30.3
Distance Between the Apexes of the Pressure Cones (a) mm - 23.4
Nominal Contact Angle (α)° - 25

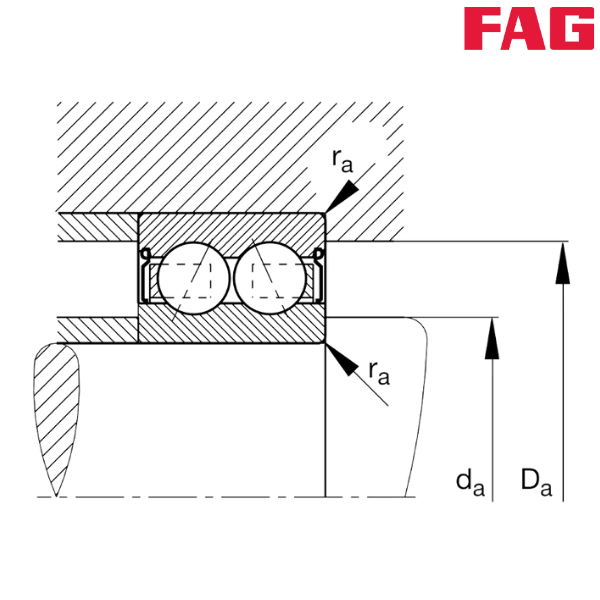

Minimum Diameter Shaft Shoulder (da) mm - 28.2
Maximum Diameter of Housing Shoulder (Da) mm - 43.8
Maximum Fillet Radius (ra) mm - 0.6
Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
TVH - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
** Images are for representation purposes only
