Description
Brand - FAG
Item Number - 3200-B-TVH FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 10
Outside Diameter (D) mm - 30
Width (B) mm - 14
Basic Dynamic Load Rating, Radial (Cr) N - 7800
Basic Static Load Rating, Radial (C0r) N - 4450
Fatigue Load Limit, Radial (Cur) N - 233
Limiting Speed (nG) min–1 - 21100
Reference Speed (nϑr) min–1 - 21000
Weight (m) kg - 0.052
Minimum Chamfer Dimension (r min) mm - 0.6
Shoulder Diameter Outer Ring (D1) mm - 23
Shoulder Diameter Inner Ring (d1) mm - 16.6
Distance Between the Apexes of the Pressure Cones (a) mm - 14.8
Nominal Contact Angle (α)° - 25

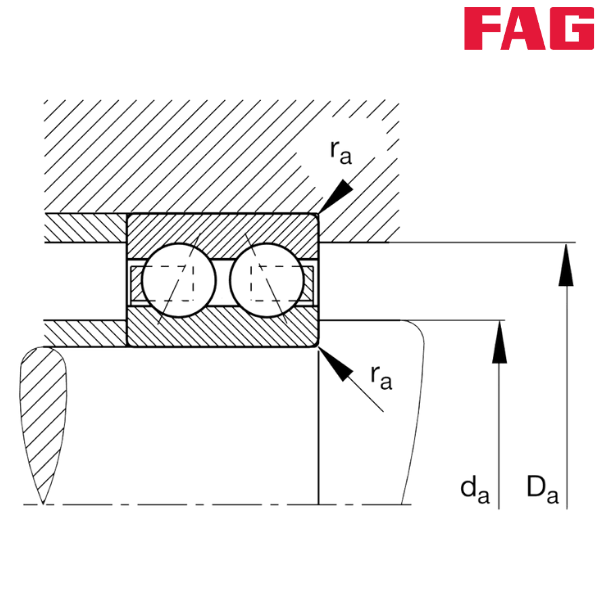

Minimum Diameter Shaft Shoulder (da) mm - 14.2
Maximum Diameter of Housing Shoulder (Da) mm - 25.8
Maximum Fillet Radius (ra) mm - 0.6
Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
TVH - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
** Images are for representation purposes only
