Description
Brand - FAG
Item Number - 3218-B-TVH FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 90
Outside Diameter (D) mm - 160
Width (B) mm - 52.4
Basic Dynamic Load Rating, Radial (Cr) N - 142000
Basic Static Load Rating, Radial (C0r) N - 142000
Fatigue Load Limit, Radial (Cur) N - 6500
Limiting Speed (nG) min–1 - 4100
Reference Speed (nϑr) min–1 - 4500
Weight (m) kg - 3.8
Minimum Chamfer Dimension (r min) mm - 2
Shoulder Diameter Outer Ring (D1) mm - 141.6
Shoulder Diameter Inner Ring (d1) mm - 116.4
Distance Between the Apexes of the Pressure Cones (a) mm - 81.4
Nominal Contact Angle (α)° - 25

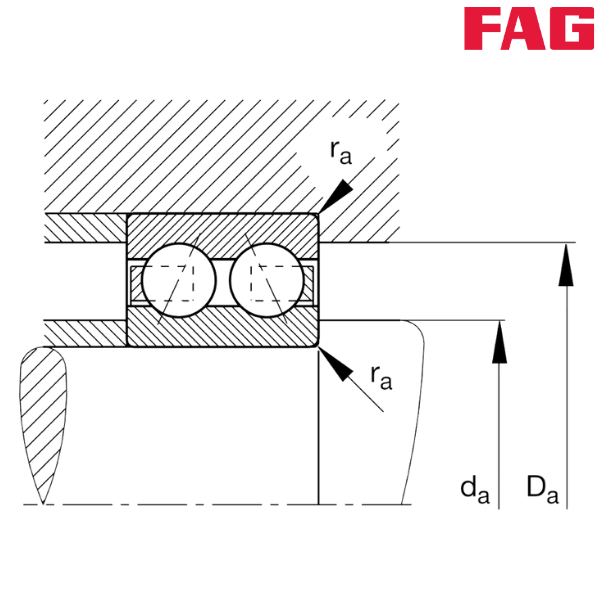

Minimum Diameter Shaft Shoulder (da) mm - 104
Maximum Diameter of Housing Shoulder (Da) mm - 146
Maximum Fillet Radius (ra) mm - 2
Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
TVH - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
** Images are for representation purposes only
