Description
Brand - FAG
Item Number - 3301-B-TVH FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 12
Outside Diameter (D) mm - 37
Width (B) mm - 19
Basic Dynamic Load Rating, Radial (Cr) N - 14600
Basic Static Load Rating, Radial (C0r) N - 8300
Fatigue Load Limit, Radial (Cur) N - 430
Limiting Speed (nG) min–1 - 20400
Reference Speed (nϑr) min–1 - 13000
Weight (m) kg - 0.093
Minimum Chamfer Dimension (r min) mm - 1
Shoulder Diameter Outer Ring (D1) mm - 30.5
Shoulder Diameter Inner Ring (d1) mm - 21.7
Distance Between the Apexes of the Pressure Cones (a) mm - 19.8
Nominal Contact Angle (α)° - 25

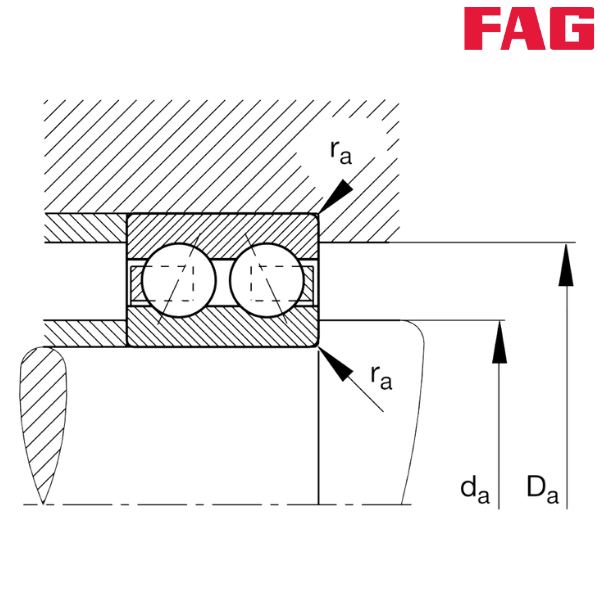

Minimum Diameter Shaft Shoulder (da) mm - 17.6
Maximum Diameter of Housing Shoulder (Da) mm - 31.4
Maximum Fillet Radius (ra) mm - 1
Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
TVH - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
** Images are for representation purposes only
