Description
Brand - FAG
Item Number - 3313-BD-XL-TVH FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 65
Outside Diameter (D) mm - 140
Width (B) mm - 58.7
Basic Dynamic Load Rating, Radial (Cr) N - 150000
Basic Static Load Rating, Radial (C0r) N - 119000
Fatigue Load Limit, Radial (Cur) N - 8100
Limiting Speed (nG) min–1 - 4900
Reference Speed (nϑr) min–1 - 5300
Weight (m) kg - 4.1
Minimum Chamfer Dimension (r min) mm - 2.1
Shoulder Diameter Outer Ring (D1) mm - 120.5
Shoulder Diameter Inner Ring (d1) mm - 93.4
Distance Between the Apexes of the Pressure Cones (a) mm - 83.5
Nominal Contact Angle (α)° - 30

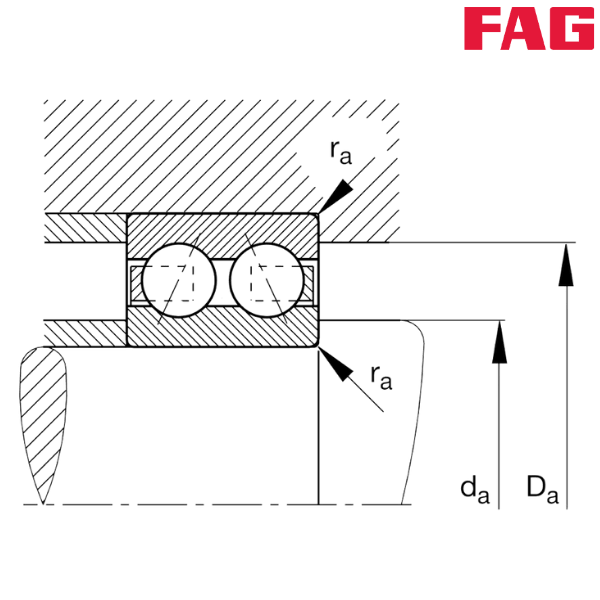

Minimum Diameter Shaft Shoulder (da) mm - 77
Maximum Diameter of Housing Shoulder (Da) mm - 128
Maximum Fillet Radius (ra) mm - 2.1
Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
TVH - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
XL - X-Life Bearing, Dependent on Bore Code and Bearing Type
** Images are for representation purposes only
