Description
Brand - FAG
Item Number - 3314-BD-XL-TVH FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 70
Outside Diameter (D) mm - 150
Width (B) mm - 63.5
Basic Dynamic Load Rating, Radial (Cr) N - 172000
Basic Static Load Rating, Radial (C0r) N - 135000
Fatigue Load Limit, Radial (Cur) N - 8900
Limiting Speed (nG) min–1 - 4550
Reference Speed (nϑr) min–1 - 5100
Weight (m) kg - 4.5
Minimum Chamfer Dimension (r min) mm - 2.1

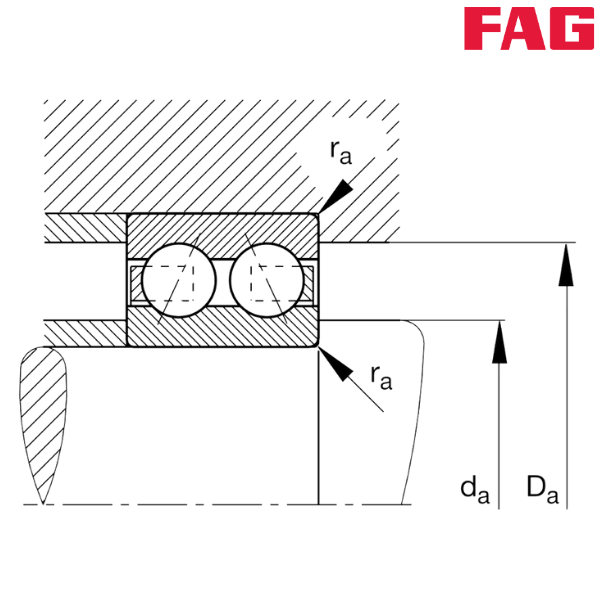

Shoulder Diameter Outer Ring (D1) mm - 129.2
Shoulder Diameter Inner Ring (d1) mm - 100.3
Distance Between the Apexes of the Pressure Cones (a) mm - 89.4
Nominal Contact Angle (α)° - 30
Minimum Diameter Shaft Shoulder (da) mm - 82
Maximum Diameter of Housing Shoulder (Da) mm - 138
Maximum Fillet Radius (ra) mm - 2.1
Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
TVH - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
XL - X-Life Bearing, Dependent on Bore Code and Bearing Type
** Images are for representation purposes only
