33895/33821 (Y1S-33821) TIMKEN

Brand - TIMKEN
Item Number - 33895/33821 (Y1S-33821) TIMKEN
Also Known As - 33895 - 33821 (Y1S-33821)
Category - Double Row Tapered Roller Bearing (2TS-DM Type)
Bore Diameter (d) mm - 53.975
Bore Diameter (d) inch - 2.125
Outer Diameter (D) mm - 95.25
Outer Diameter (D) inch - 3.75
Width (T) mm - 55.565
Width (T) inch - 2.1876
Width (B) mm - 57.15
Width (B) inch - 2.25
Dynamic Radial Rating (C1) N - 226000
Dynamic Radial Rating (C1) lbf - 50800
Factor (e) - 0.33
Factor (Y1) - 2.05
Factor (Y2) - 3.05
Dynamic Radial Rating (90 million revolutions) (C90) N - 33600
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 7560
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 19000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 4270
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 58600
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 13200
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.77
Maximum Shaft Fillet Radius (R) mm - 0.3
Maximum Shaft Fillet Radius (R) inch - 0.01
Backing Shoulder Diameter (db) mm - 60
Backing Shoulder Diameter (db) inch - 2.36
Maximum Housing Fillet Radius (r) mm - 2.3
Maximum Housing Fillet Radius (r) inch - 0.09
Cup Frontface Backing Diameter (Da) mm - 85
Cup Frontface Backing Diameter (Da) inch - 3.35
Weight (kg) - 1.66
Weight (lbs) - 3.66
Outer Spacer - Y1S-33821
Inner Part Number - 33895
Outer Part Number - 33821

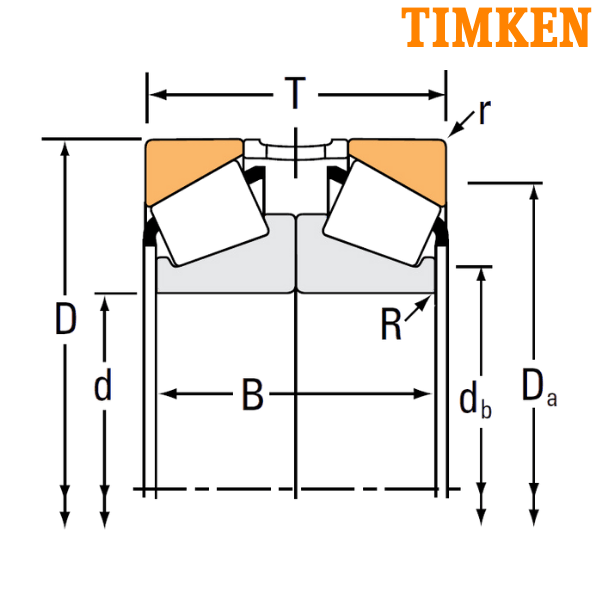

2TS-DM - Two Single-Row Bearings with an Inner-Ring and Outer-Ring Spacer, Direct Mounting

** Images are for representation purposes only
