Description
Brand - McMASTER-CARR
Item Number - 3608N11 McMASTER-CARR

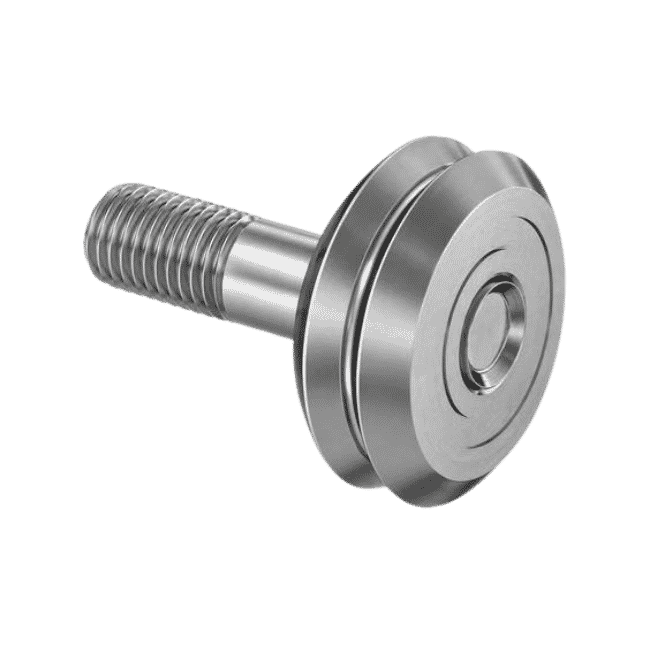

Category - Sanitary Threaded V-Groove Track Rollers (Single-Sealed 440C Stainless Steel V-Groove Rollers with Standard Shoulder)

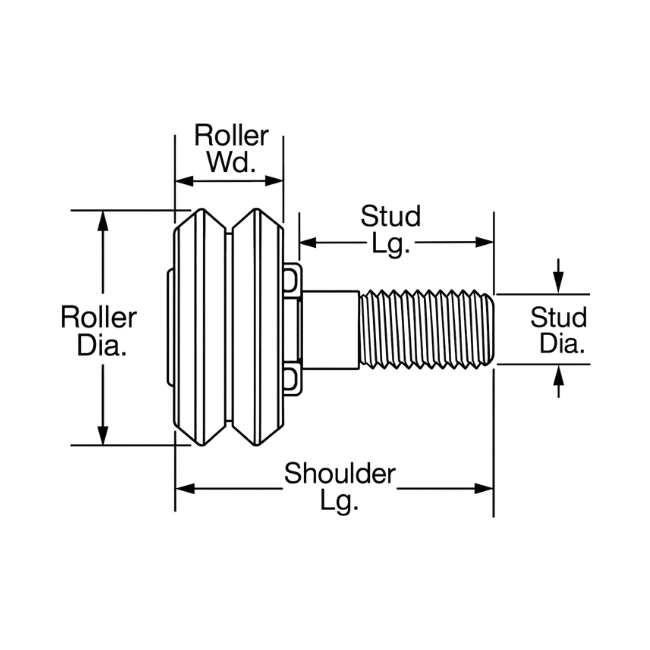

Roller Diameter (mm) - 31
Roller Width (mm) - 11
Stud Diameter (mm) - 10
Stud Length (mm) - 25
Thread Size (mm) - M10
Pitch Diameter of Thread (mm) - 1.5
Length of Thread (mm) - 15
Shoulder Length (mm) - 3.1
Hex Shoulder Width (mm) - 14
Height Adjustment Capability (mm) - 1
Groove Width (mm) - 6
Groove Depth (mm) - 3
Maximum Speed (rpm) - 3400
Radial Static Load Capacity (lbs) - 590
Radial Dynamic Load Capacity (lbs) - 590
Static Thrust Load Capacity (lbs) - 140
Maximum Temperature (°F) - 175°
Inside Bearing Type - Ball Bearing
Includes - Mounting Hardware
**Images are for representation purposes only
