368A/362A (Y1S-362A) TIMKEN

Brand - TIMKEN
Item Number - 368A/362A (Y1S-362A) TIMKEN
Also Known As - 368A - 362A (Y1S-362A)
Category - Double Row Tapered Roller Bearing (2TS-DM Type)
Bore Diameter (d) mm - 50.8
Bore Diameter (d) inch - 2
Outer Diameter (D) mm - 88.9
Outer Diameter (D) inch - 3.5
Width (T) mm - 41.275
Width (T) inch - 1.625
Width (B) mm - 44.45
Width (B) inch - 1.75
Dynamic Radial Rating (C1) N - 177000
Dynamic Radial Rating (C1) lbf - 39900
Factor (e) - 0.32
Factor (Y1) - 2.11
Factor (Y2) - 3.14
Dynamic Radial Rating (90 million revolutions) (C90) N - 26400
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 5930
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 14400
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 3250
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 46000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 10300
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.83
Maximum Shaft Fillet Radius (R) mm - 0.3
Maximum Shaft Fillet Radius (R) inch - 0.01
Backing Shoulder Diameter (db) mm - 56
Backing Shoulder Diameter (db) inch - 2.2
Maximum Housing Fillet Radius (r) mm - 1.3
Maximum Housing Fillet Radius (r) inch - 0.05
Cup Frontface Backing Diameter (Da) mm - 81
Cup Frontface Backing Diameter (Da) inch - 3.19
Weight (kg) - 1.08
Weight (lbs) - 2.34
Outer Spacer - Y1S-362A
Inner Part Number - 368A
Outer Part Number - 362A

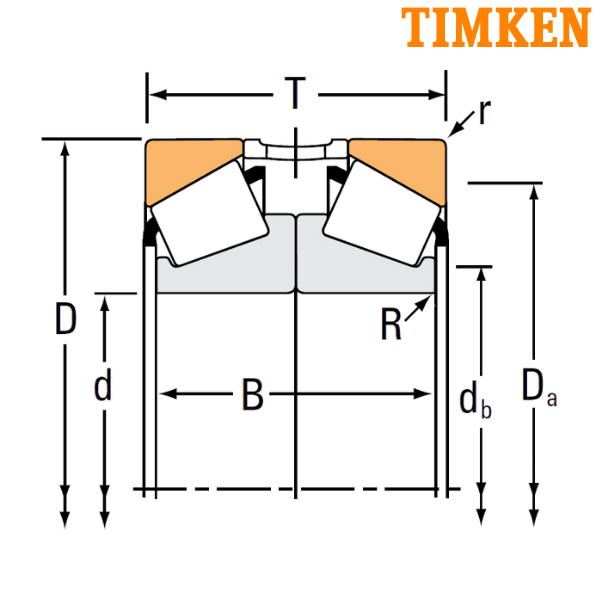

2TS-DM - Two Single-Row Bearings with an Inner-Ring and Outer-Ring Spacer, Direct Mounting

** Images are for representation purposes only
