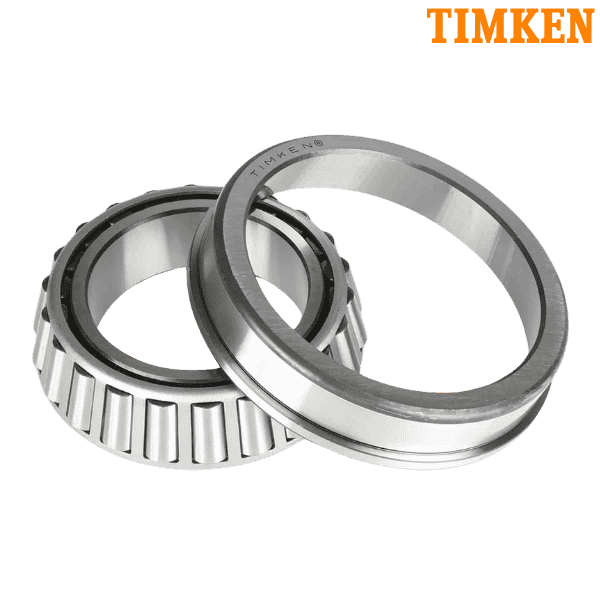

369-S/362AB TIMKEN

Brand - TIMKEN
Item Number - 369-S/362AB TIMKEN
Also Known As - 369-S - 362AB
Category - Single Row Tapered Roller Bearing (TSF Type)

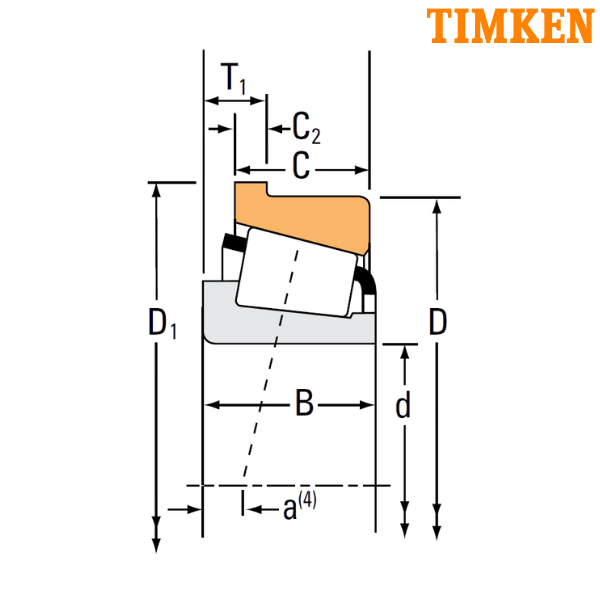

Bore Diameter (d) mm - 47.625
Bore Diameter (d) inch - 1.875
Outer Diameter (D) mm - 88.9
Outer Diameter (D) inch - 3.5
Width (T1) mm - 8.887
Width (T1) inch - 0.3499
Dynamic Load Rating (C1) N - 102000
Dynamic Load Rating (C1) lbf - 22900
Factor (e) - 0.32
Factor (Y) - 1.88
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 26400
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 5930
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 14400
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 3250
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.83
Basic Static Radial Load Rating (C0) N - 95800
Basic Static Radial Load Rating (C0) lbf - 21500
Cone Width (B) mm - 22.225
Cone Width (B) inch - 0.875
Cup Width (C) mm - 16.513
Cup Width (C) inch - 0.6501
Effective Center Location (a) mm - -4.3
Effective Center Location (a) inch - -0.17
Outer Diameter of Outer Ring Flange (D1) mm - 93.662
Outer Diameter of Outer Ring Flange (D1) inch - 3.6875
Flange Width (C2) mm - 4.762
Flange Width (C2) inch - 0.1875
Maximum Shaft Fillet Radius (R) mm - 2.3
Maximum Shaft Fillet Radius (R) inch - 0.09
Cone Frontface Backing Diameter (da) mm - 53
Cone Frontface Backing Diameter (da) inch - 2.09
Cone Backface Backing Diameter (db) mm - 57
Cone Backface Backing Diameter (db) inch - 2.24
Cup Frontface Backing Diameter (Da) mm - 86
Cup Frontface Backing Diameter (Da) inch - 3.39
Geometry Factor (G1) - 33.8
Geometry Factor (G2) - 14
Geometry Factor (Cg) - 0.0773
Weight (kg) - 0.58
Weight (lbs) - 1.28
Inner Part Number - 369-S
Outer Part Number - 362AB
TSF - Single-Row Bearing with a Flange on the Outer Ring

** Images are for representation purposes only
