37425/37626D TIMKEN

Brand - TIMKEN
Item Number - 37425/37626D TIMKEN
Also Known As - 37425 - 37626D
Category - Double Row Tapered Roller Bearing (TDO Type)
Bore Diameter (d) mm - 107.95
Bore Diameter (d) inch - 4.25
Outer Diameter (D) mm - 158.75
Outer Diameter (D) inch - 6.25
Bearing Width across Cones (T) mm - 53.978
Bearing Width across Cones (T) inch - 2.1251
Double Outer Ring Width (C) mm - 39.688
Double Outer Ring Width (C) inch - 1.5625
Dynamic Load Rating (C1) N - 238000
Dynamic Load Rating (C1) lbf - 53400
Factor (e) - 0.61
Factor (Y1) - 1.11
Factor (Y2) - 1.66
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) N - 35400
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) lbf - 7960
Dynamic Thrust Rating (90 million revolutions) (Ca90) N - 36700
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbf - 8250
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 61600
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 13900
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 0.96

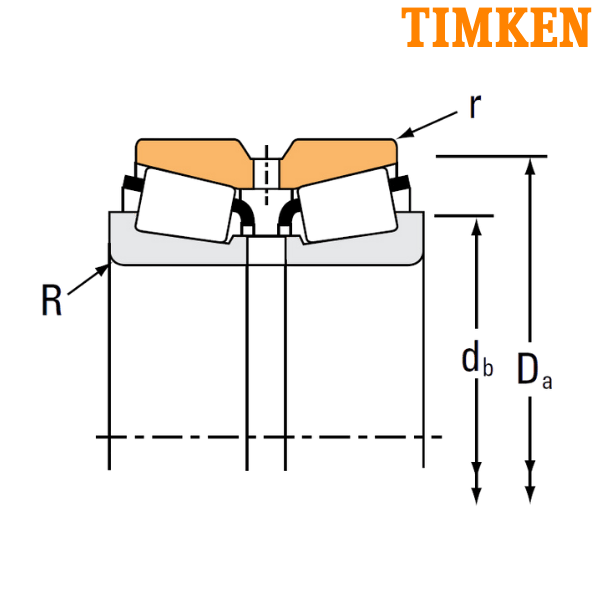

Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14
Cone Backface Backing Diameter (db) mm - 122
Cone Backface Backing Diameter (db) inch - 4.8
Maximum Housing Fillet Radius (r) mm - 0.8
Maximum Housing Fillet Radius (r) inch - 0.03
Cup Frontface Backing Diameter (Da) mm - 152
Cup Frontface Backing Diameter (Da) inch - 5.98
Geometry Factor (G1) - 123.7
Geometry Factor (G2) - 57.1
Geometry Factor (Cg) - 0.1443
Bearing Weight (kg) - 3.21
Bearing Weight (lbs) - 7.07
Inner Part Number - 37425
Outer Part Number - 37626D
TDO - Single Piece (Double) Outer Ring and Two Single Inner Rings

** Images are for representation purposes only
