Description
Brand - FAG
Item Number - 3802-B-2RZ-TVH FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 15
Outside Diameter (D) mm - 24
Width (B) mm - 7
Basic Dynamic Load Rating, Radial (Cr) N - 2080
Basic Static Load Rating, Radial (C0r) N - 1560
Fatigue Load Limit, Radial (Cur) N - 81
Limiting Speed (nG) min–1 - 25000
Reference Speed (nϑr) min–1 - 14900
Weight (m) kg - 0.012
Minimum Chamfer Dimension (r min) mm - 0.3
Caliber Diameter Outer Ring (D2) mm - 21.8
Caliber Diamter Inner Ring (d2) mm - 17.2
Distance Between the Apexes of the Pressure Cones (a) mm - 11.3
Nominal Contact Angle (α)° - 25

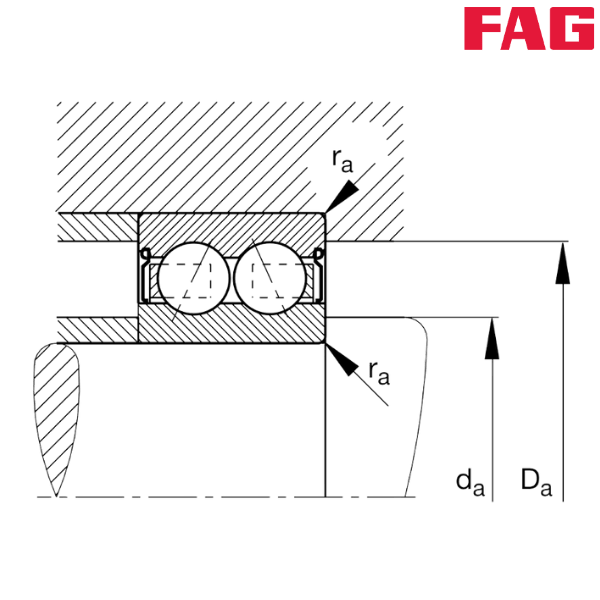

Minimum Diameter Shaft Shoulder (da) mm - 17
Maximum Diameter of Housing Shoulder (Da) mm - 22
Maximum Fillet Radius (ra) mm - 0.3
Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
TVH - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
** Images are for representation purposes only
