Description
Brand - FAG
Item Number - 3804-B-2RZ-TVH FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 20
Outside Diameter (D) mm - 32
Width (B) mm - 10
Basic Dynamic Load Rating, Radial (Cr) N - 5600
Basic Static Load Rating, Radial (C0r) N - 4750
Fatigue Load Limit, Radial (Cur) N - 247
Limiting Speed (nG) min–1 - 17400
Reference Speed (nϑr) min–1 - 11800
Weight (m) kg - 0.026
Minimum Chamfer Dimension (r min) mm - 0.3
Caliber Diameter Outer Ring (D2) mm - 30.1
Caliber Diamter Inner Ring (d2) mm - 23.9
Distance Between the Apexes of the Pressure Cones (a) mm - 16.1
Nominal Contact Angle (α)° - 25

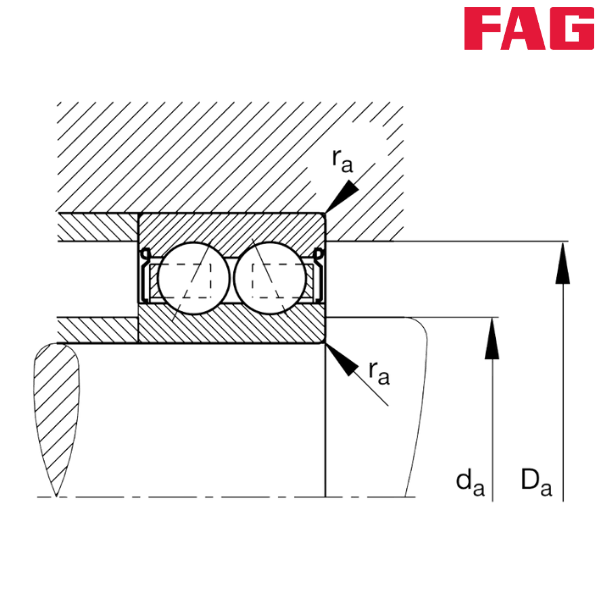

Minimum Diameter Shaft Shoulder (da) mm - 22
Maximum Diameter of Housing Shoulder (Da) mm - 30
Maximum Fillet Radius (ra) mm - 0.3
Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
TVH - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
** Images are for representation purposes only
