Description
Brand - FAG
Item Number - 3808-B-2RS-TVH FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 40
Outside Diameter (D) mm - 52
Width (B) mm - 10
Basic Dynamic Load Rating, Radial (Cr) N - 6900
Basic Static Load Rating, Radial (C0r) N - 7600
Fatigue Load Limit, Radial (Cur) N - 430
Limiting Speed (nG) min–1 - 6100
Weight (m) kg - 0.046
Minimum Chamfer Dimension (r min) mm - 0.3
Caliber Diameter Outer Ring (D2) mm - 49.6
Caliber Diamter Inner Ring (d2) mm - 43.5
Distance Between the Apexes of the Pressure Cones (a) mm - 25.2
Nominal Contact Angle (α)° - 25

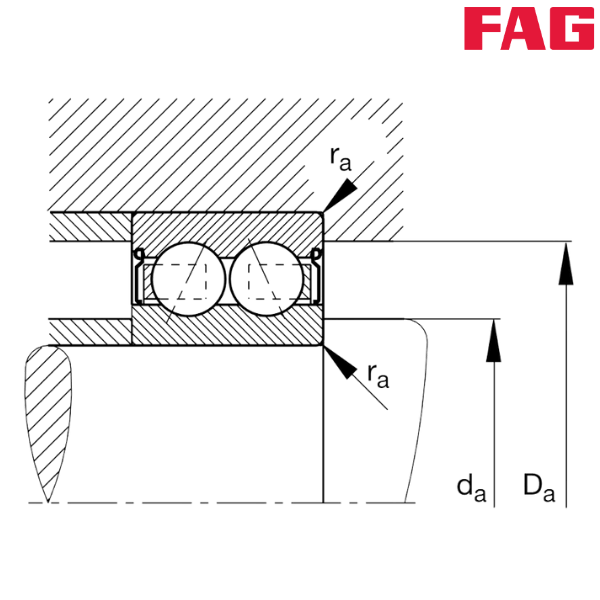

Minimum Diameter Shaft Shoulder (da) mm - 42
Maximum Diameter of Housing Shoulder (Da) mm - 50
Maximum Fillet Radius (ra) mm - 0.3
Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
TVH - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
2RS - Contact Seal on Both Sides (Lip Seal)
** Images are for representation purposes only
