Description
Brand - FAG
Item Number - 3812-B-TVH FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 60
Outside Diameter (D) mm - 78
Width (B) mm - 14
Basic Dynamic Load Rating, Radial (Cr) N - 14200
Basic Static Load Rating, Radial (C0r) N - 17100
Fatigue Load Limit, Radial (Cur) N - 970
Limiting Speed (nG) min–1 - 8800
Reference Speed (nϑr) min–1 - 4700
Weight (m) kg - 0.161
Minimum Chamfer Dimension (r min) mm - 0.3
Shoulder Diameter Outer Ring (D1) mm - 73
Shoulder Diameter Inner Ring (d1) mm - 67.1
Distance Between the Apexes of the Pressure Cones (a) mm - 38.1
Nominal Contact Angle (α)° - 25

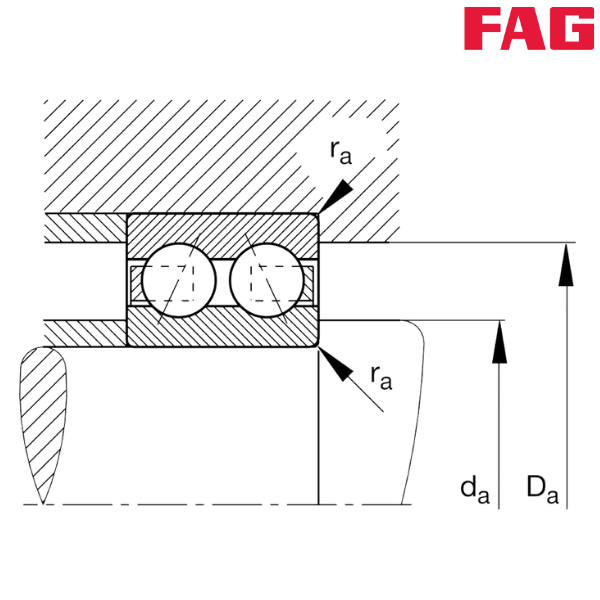

Minimum Diameter Shaft Shoulder (da) mm - 62
Maximum Diameter of Housing Shoulder (Da) mm - 76
Maximum Fillet Radius (ra) mm - 0.3
Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
TVH - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
** Images are for representation purposes only
