Brand - FAG
Item Number - 3814-B-TVH FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 70
Outside Diameter (D) mm - 90
Width (B) mm - 15
Basic Dynamic Load Rating, Radial (Cr) N - 18800
Basic Static Load Rating, Radial (C0r) N - 23200
Fatigue Load Limit, Radial (Cur) N - 1310
Limiting Speed (nG) min–1 - 7500
Reference Speed (nϑr) min–1 - 4050
Weight (m) kg - 0.2
Minimum Chamfer Dimension (r min) mm - 0.6

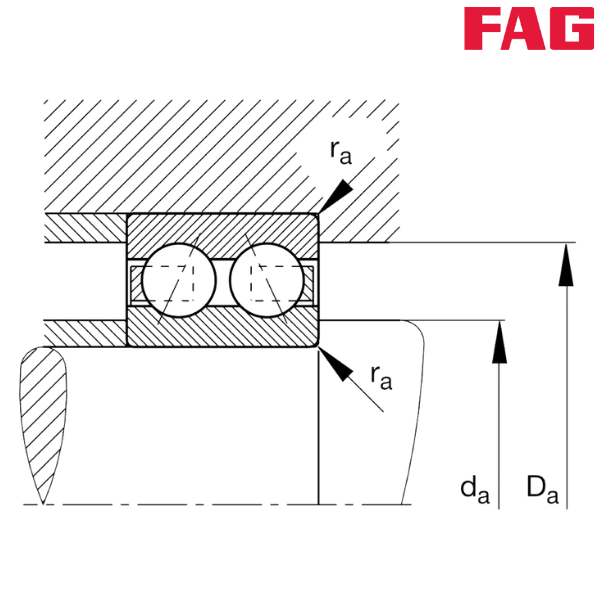

Shoulder Diameter Outer Ring (D1) mm - 84.5
Shoulder Diameter Inner Ring (d1) mm - 77.7
Distance Between the Apexes of the Pressure Cones (a) mm - 43.6
Nominal Contact Angle (α)° - 25
Minimum Diameter Shaft Shoulder (da) mm - 73.2
Maximum Diameter of Housing Shoulder (Da) mm - 86.8
Maximum Fillet Radius (ra) mm - 0.6
Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
TVH - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
