Description
Brand - DODGE

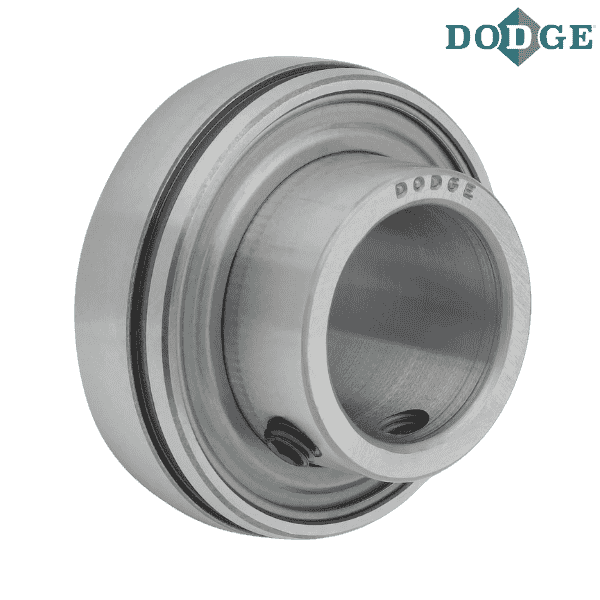

Item Number - 389933 DODGE - INS-VSC-203
Category - Setscrew VSC Ball Bearings (VSC Intermediate Duty Bearing Inserts)
Series - 211
Shaft Size (inch) - 2.1875
Description - INS-VSC-203
Weight (lbs) - 1.95

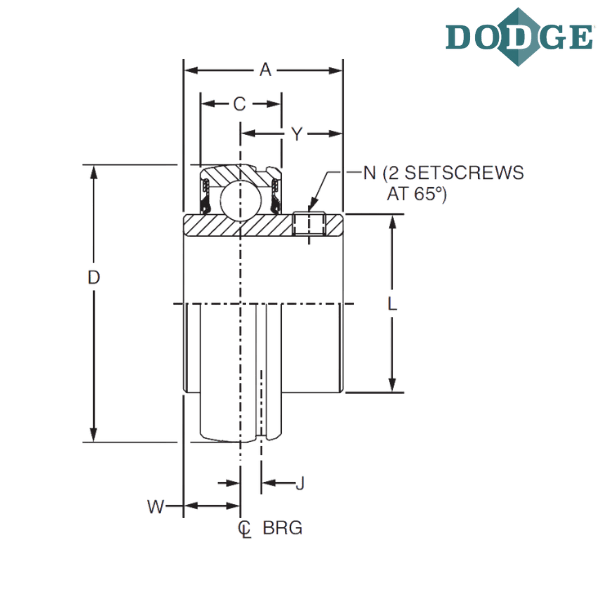

Overall Width (A) inch - 2.22
C (inch) - 0.94
Overall Length (D) inch - 3.937
J (inch) - 0.25
L (inch) - 2.71
N (inch) - 3/8-24
W (inch) - 0.87
Y (inch) - 1.35
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
INS - Insert
** Images are for representation purposes only
