Description
Brand - DODGE
Item Number - 389934 DODGE - INS-VSC-104S
Category - Setscrew VSC Ball Bearings (VSC Intermediate Duty Bearing Inserts)
Series - 206
Shaft Size (inch) - 1.25
Description - INS-VSC-104S
Weight (lbs) - 0.56

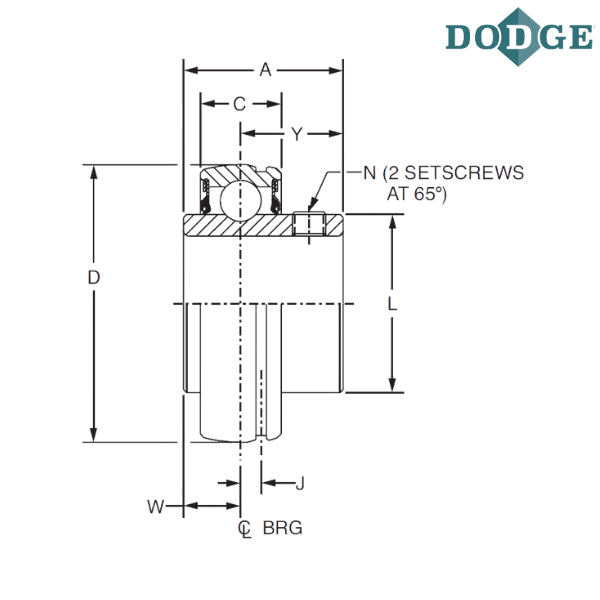

Overall Width (A) inch - 1.52
C (inch) - 0.69
Overall Length (D) inch - 2.4409
J (inch) - 0.16
L (inch) - 1.57
N (inch) - 5/16-24
W (inch) - 0.58
Y (inch) - 0.94
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
INS - Insert
S - Next smaller ring size

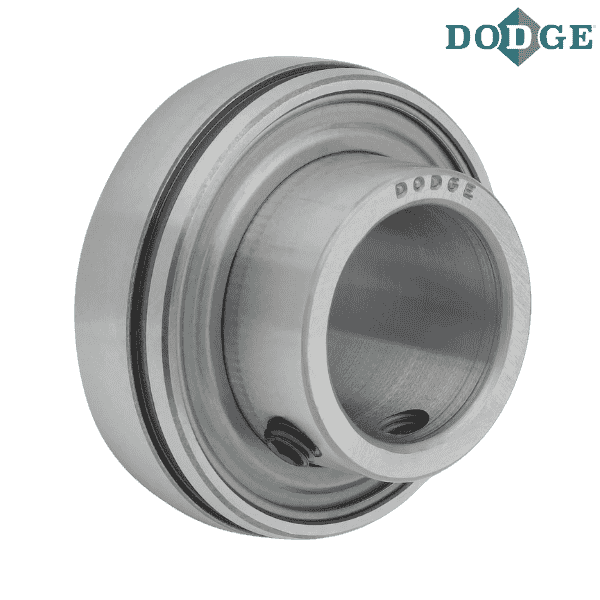

** Images are for representation purposes only
