Description
Brand - DODGE

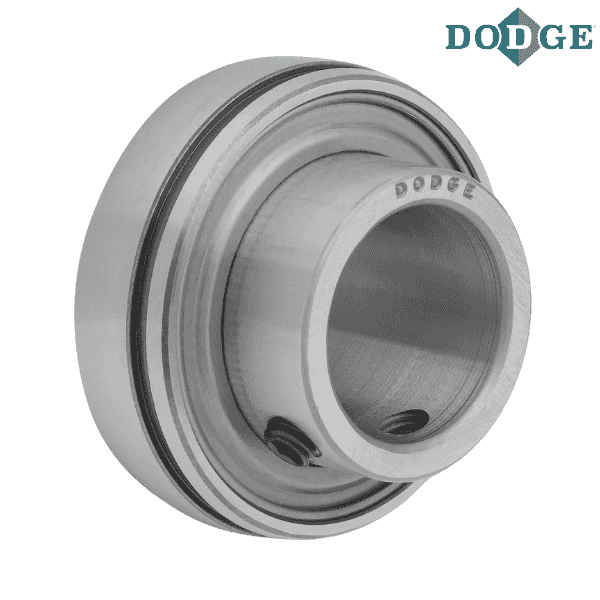

Item Number - 389936 DODGE - INS-VSC-014
Category - Setscrew VSC Ball Bearings (VSC Intermediate Duty Bearing Inserts)
Series - 205
Shaft Size (inch) - 0.875
Description - INS-VSC-014
Weight (lbs) - 0.41

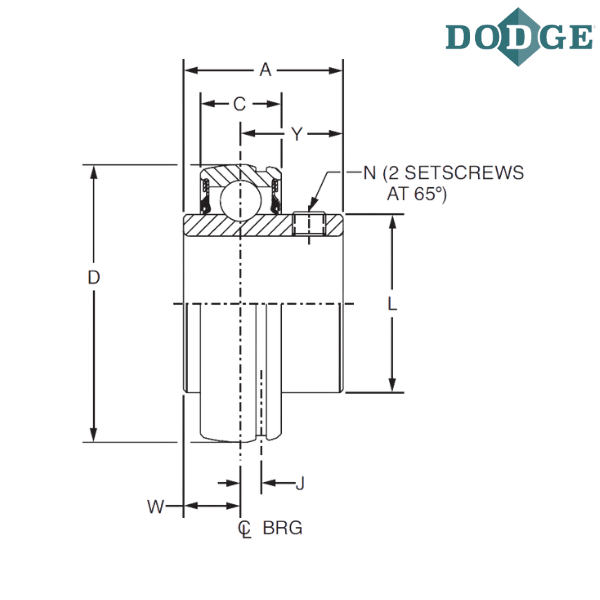

Overall Width (A) inch - 1.34
C (inch) - 0.59
Overall Length (D) inch - 2.0472
J (inch) - 0.16
L (inch) - 1.32
N (inch) - 1/4-28
W (inch) - 0.56
Y (inch) - 0.78
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
INS - Insert
** Images are for representation purposes only
