39236/39412-B TIMKEN

Brand - TIMKEN
Item Number - 39236/39412-B TIMKEN
Also Known As - 39236 - 39412-B
Category - Single Row Tapered Roller Bearing (TSF Type)
Bore Diameter (d) mm - 59.987
Bore Diameter (d) inch - 2.3617
Outer Diameter (D) mm - 104.775
Outer Diameter (D) inch - 4.125
Width (T1) mm - 10.32
Width (T1) inch - 0.4063
Dynamic Load Rating (C1) N - 115000
Dynamic Load Rating (C1) lbf - 25800
Factor (e) - 0.39
Factor (Y) - 1.55
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 29700
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 6680
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 19700
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 4440
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.51
Basic Static Radial Load Rating (C0) N - 120000
Basic Static Radial Load Rating (C0) lbf - 27000
Cone Width (B) mm - 22
Cone Width (B) inch - 0.8661
Cup Width (C) mm - 15.875
Cup Width (C) inch - 0.625
Effective Center Location (a) mm - -1.5
Effective Center Location (a) inch - -0.06
Outer Diameter of Outer Ring Flange (D1) mm - 109.433
Outer Diameter of Outer Ring Flange (D1) inch - 4.3084
Flange Width (C2) mm - 4.762
Flange Width (C2) inch - 0.1875
Maximum Shaft Fillet Radius (R) mm - 2.3
Maximum Shaft Fillet Radius (R) inch - 0.09
Cone Frontface Backing Diameter (da) mm - 67
Cone Frontface Backing Diameter (da) inch - 2.64
Cone Backface Backing Diameter (db) mm - 71
Cone Backface Backing Diameter (db) inch - 2.8
Cup Frontface Backing Diameter (Da) mm - 102
Cup Frontface Backing Diameter (Da) inch - 4.02
Geometry Factor (G1) - 51.7
Geometry Factor (G2) - 19.5
Geometry Factor (Cg) - 0.0947
Weight (kg) - 0.77
Weight (lbs) - 1.7
Inner Part Number - 39236
Outer Part Number - 39412-B

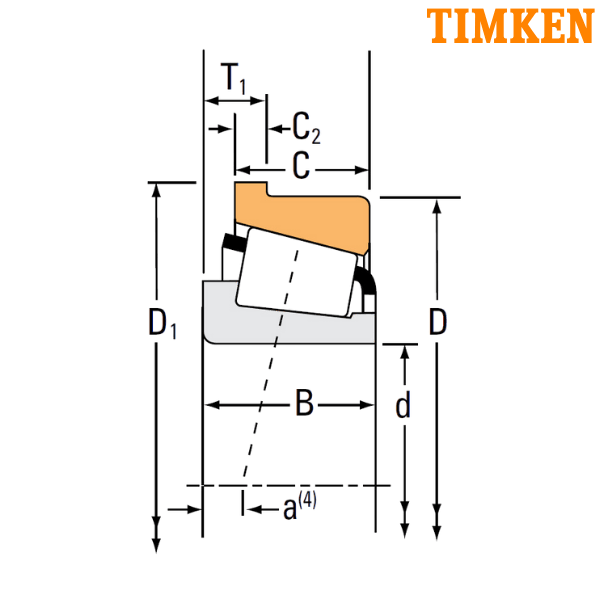

TSF - Single-Row Bearing with a Flange on the Outer Ring

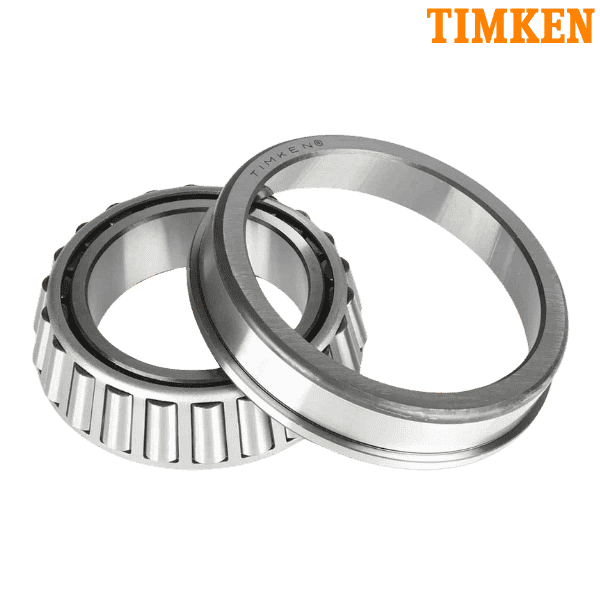

** Images are for representation purposes only
