Description
Brand - TIMKEN
Item Number - 39585P/39521P (K167544/K326057R) TIMKEN
Also Known As - 39585P - 39521P (K167544 - K326057R)
Category - Double Row Tapered Roller Bearing (2S Type)
Bore Diameter (d) mm - 63.5
Bore Diameter (d) inch - 2.5
Outer Diameter (D) mm - 112.712
Outer Diameter (D) inch - 4.4375
Width (T) mm - 66.675
Width (T) inch - 2.625
Width (C) mm - 53.975
Width (C) inch - 2.125
Dynamic Radial Rating (C1) N - 344000
Dynamic Radial Rating (C1) lbf - 77400
Factor (e) - 0.34
Factor (Y1) - 1.99
Factor (Y2) - 2.96
Dynamic Radial Rating (90 million revolutions) (C90) N - 51300
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 11500
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 29800
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 6700
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 89300
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 20100
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.72

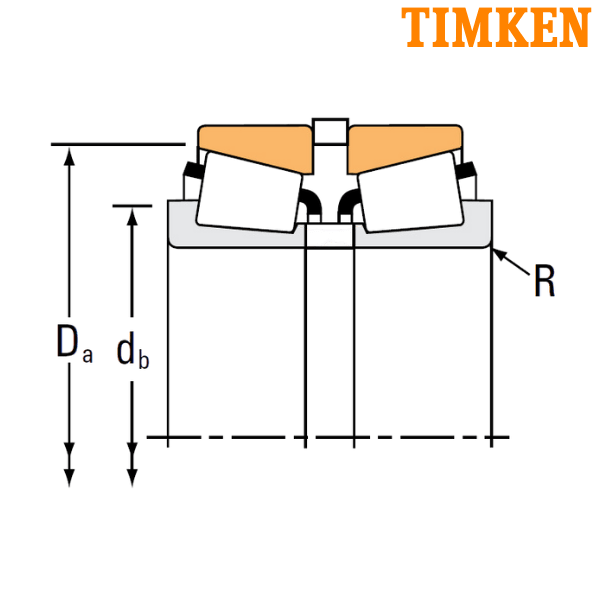

Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14
Backing Shoulder Diameter (db) mm - 79
Backing Shoulder Diameter (db) inch - 3.11
Maximum Housing Fillet Radius (r) mm - 107
Maximum Housing Fillet Radius (r) inch - 4.21

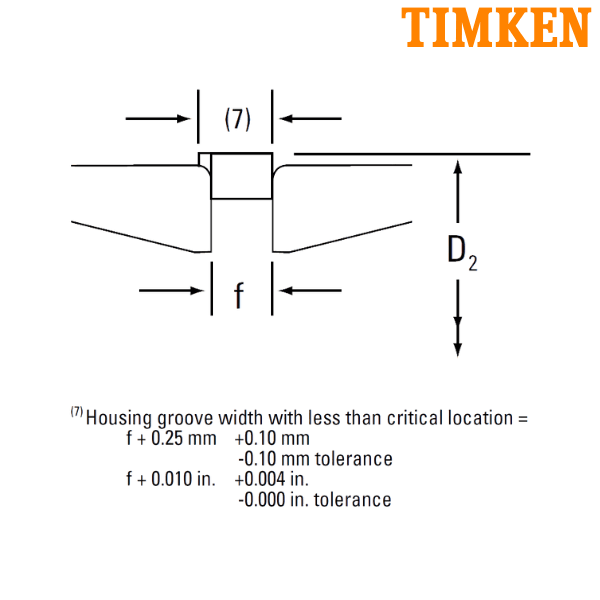

Snap Ring Groove (D2) mm - 116.74
Snap Ring Groove (D2) inch - 4.6
Snap Ring Groove (f) mm - 6.35
Snap Ring Groove (f) inch - 0.25
Weight (kg) - 2.68
Weight (lbs) - 5.92
Inner Spacer - K167544
Outer Spacer - K326057R
Inner Part Number - 39585P
Outer Part Number - 39521P
2S - Two Single-Row Bearings with Snap Ring Spacer
** Images are for representation purposes only
