Description
Brand - DODGE
Item Number - 421250 DODGE - BRG-UN2-207
Category - UNISPHERE II Bearing Insert With Seal - Inch
Bearing - 22213
Shaft Size (inch) - 2.4375
Part Name - BRG-UN2-207
Approximate Weight (lbs) - 4.1

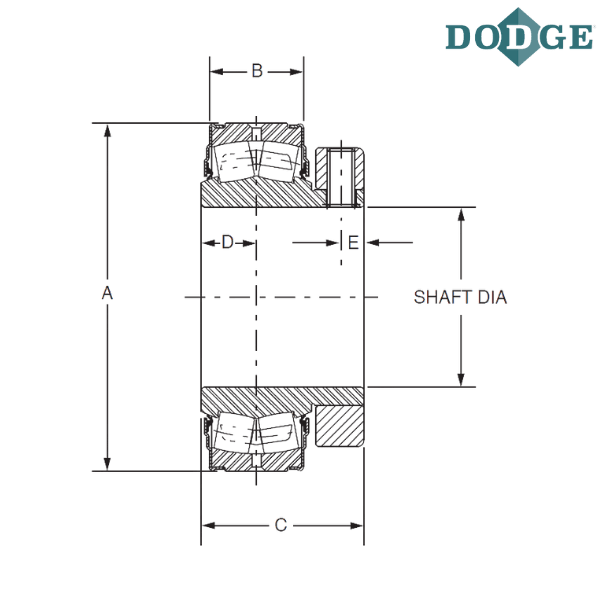

Overall Length (A) inch - 4.7244
B (inch) - 1.27
Thickness (C) inch - 2.2
D (inch) - 0.75
E (inch) - 0.32
Notes :
UN2 - UNISPHERE II
** Images are for representation purposes only
