Description
Brand - DODGE
Item Number - 421256 DODGE - BRG-UN2-307
Category - UNISPHERE II Bearing Insert With Seal - Inch
Bearing - 22218
Shaft Size (inch) - 3.4375
Part Name - BRG-UN2-307
Approximate Weight (lbs) - 9.2

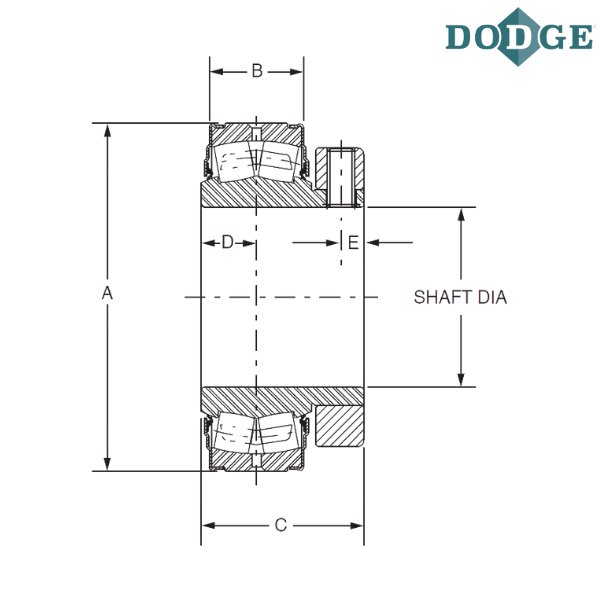

Overall Length (A) inch - 6.2992
B (inch) - 1.62
Thickness (C) inch - 2.86
D (inch) - 0.95
E (inch) - 0.44
Notes :
UN2 - UNISPHERE II

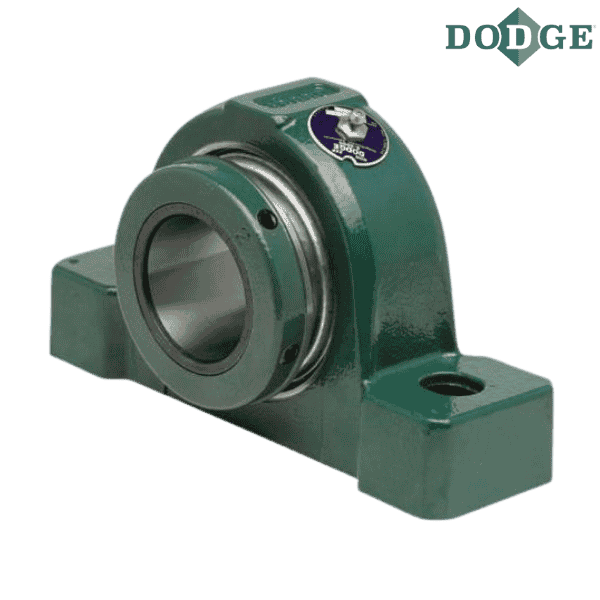

** Images are for representation purposes only
